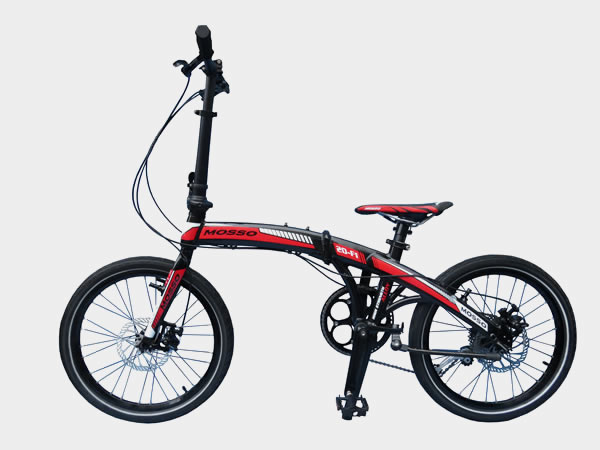

SMALL BIKES20-F1
TRAVEL!
Color :

Specifications

SizeWeightBB lengthSeat postSeat clampHead set
20" 11kg 68mm 33.9mm 40.8mm 44mm

Characteristic

SizeMATERIALTYPETYPE FOR USEPRICE
20" ALU 6061


STANDARD COMPONENTS
Speed Change: Speed Change: 9 Speeds, max 32T
Rear Derailleur: L-TWOO RD-V4009-M-2
Front & Rear Brake: MM-1614/1618
Crankset: ROCK-53T(S)
Cassettes: 9SPEED,11-32T
Wheelset: DH440 20"*14G*1.5*28H
Tires: CST C1959 20*1.75
Pedal: Gineyea M-506 9/16
Max Load: 120KG
Frame: Mosso 20-F1 alloy
Fork: Mosso 20-F1 alloy
.

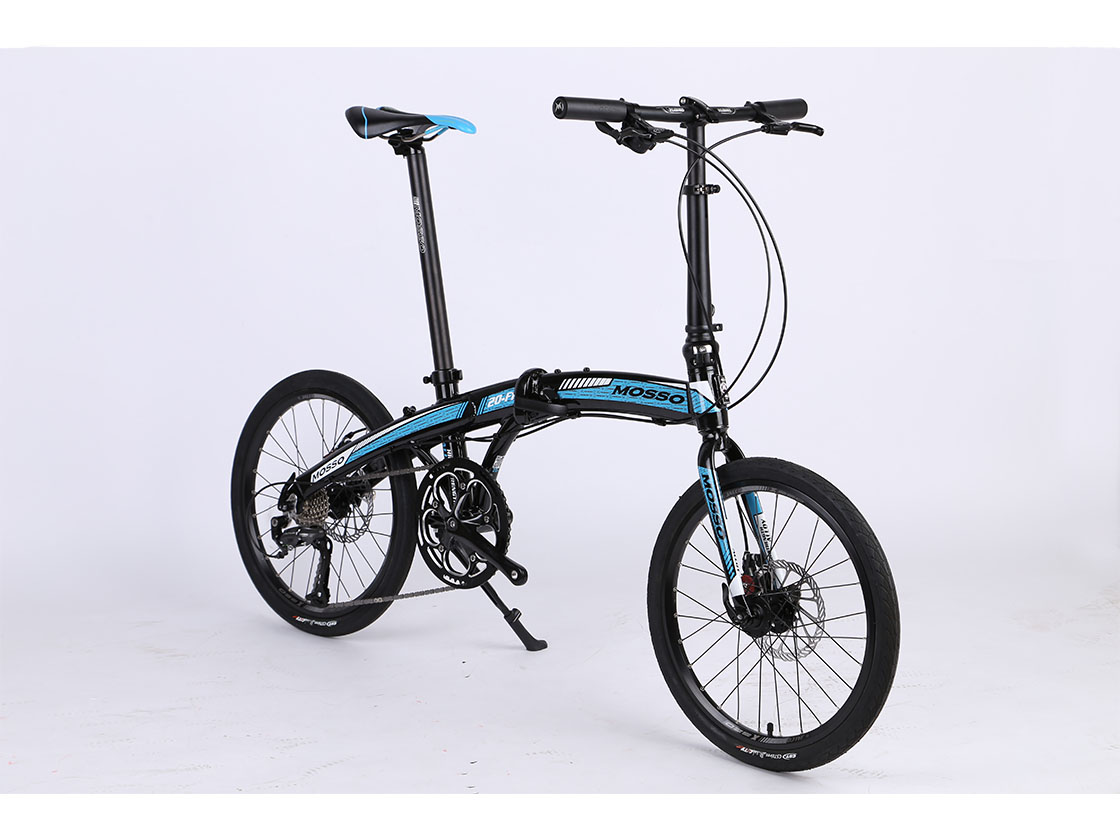

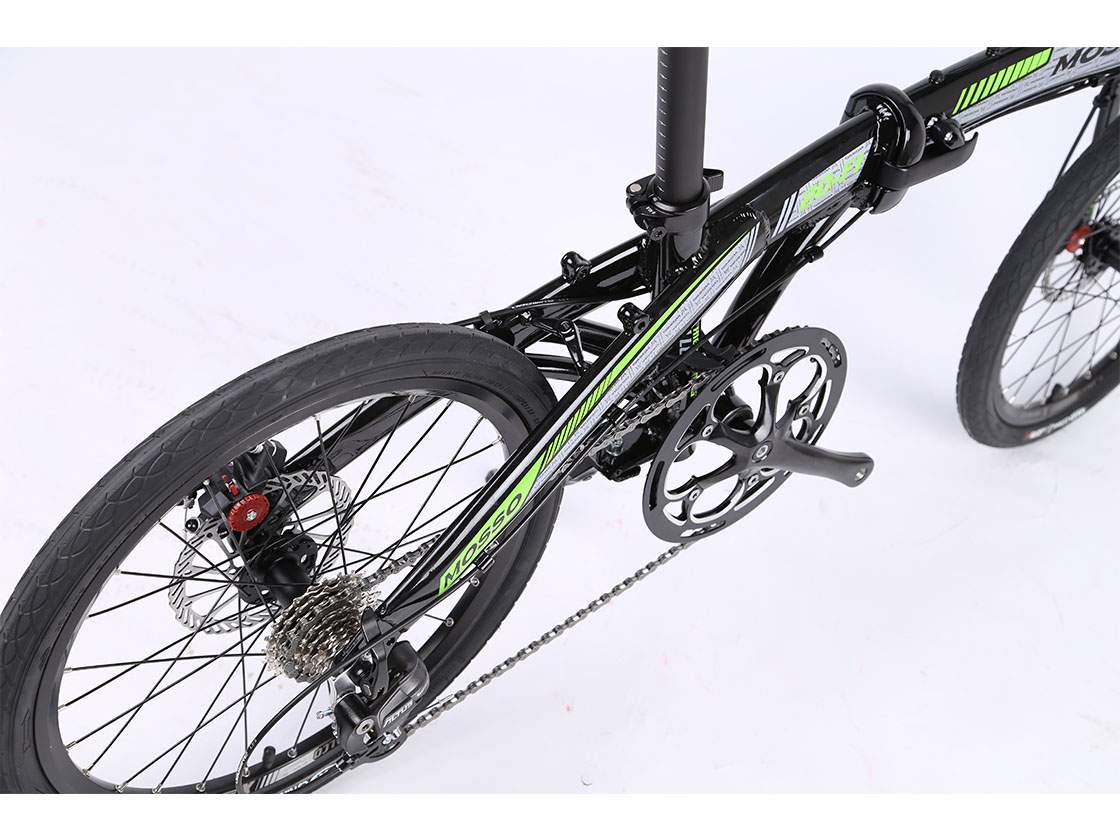

GAllery

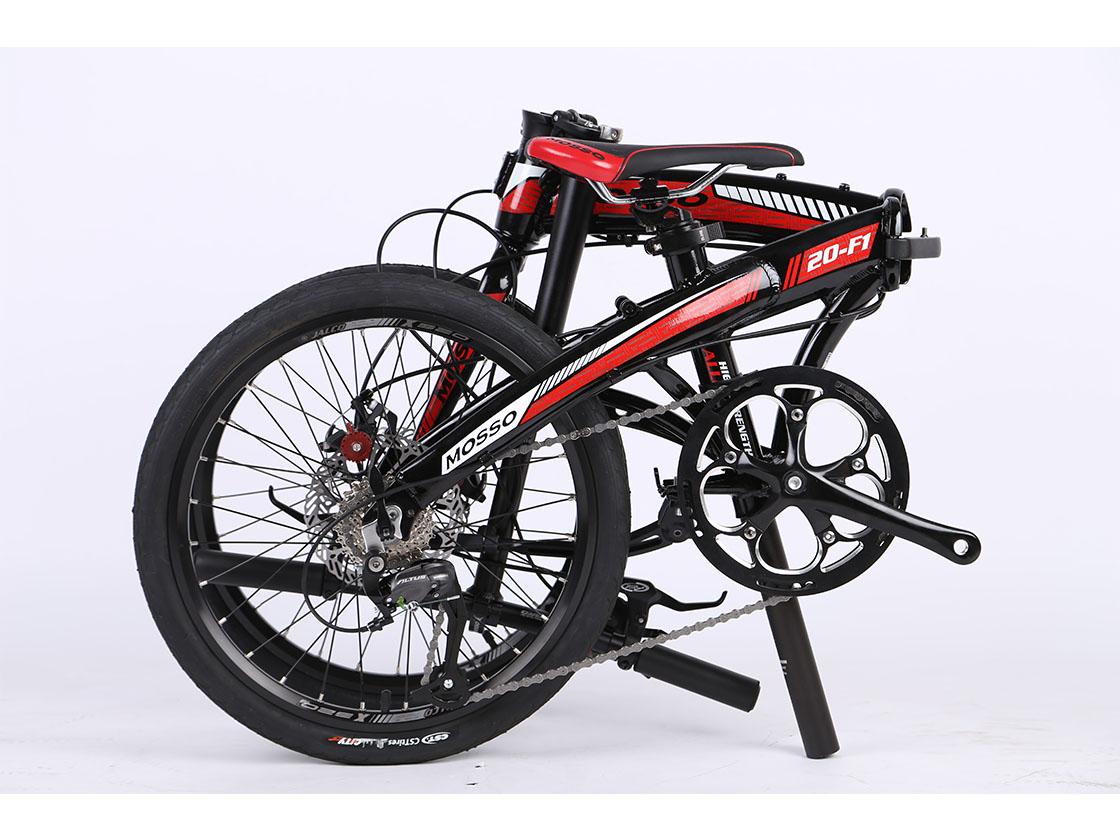

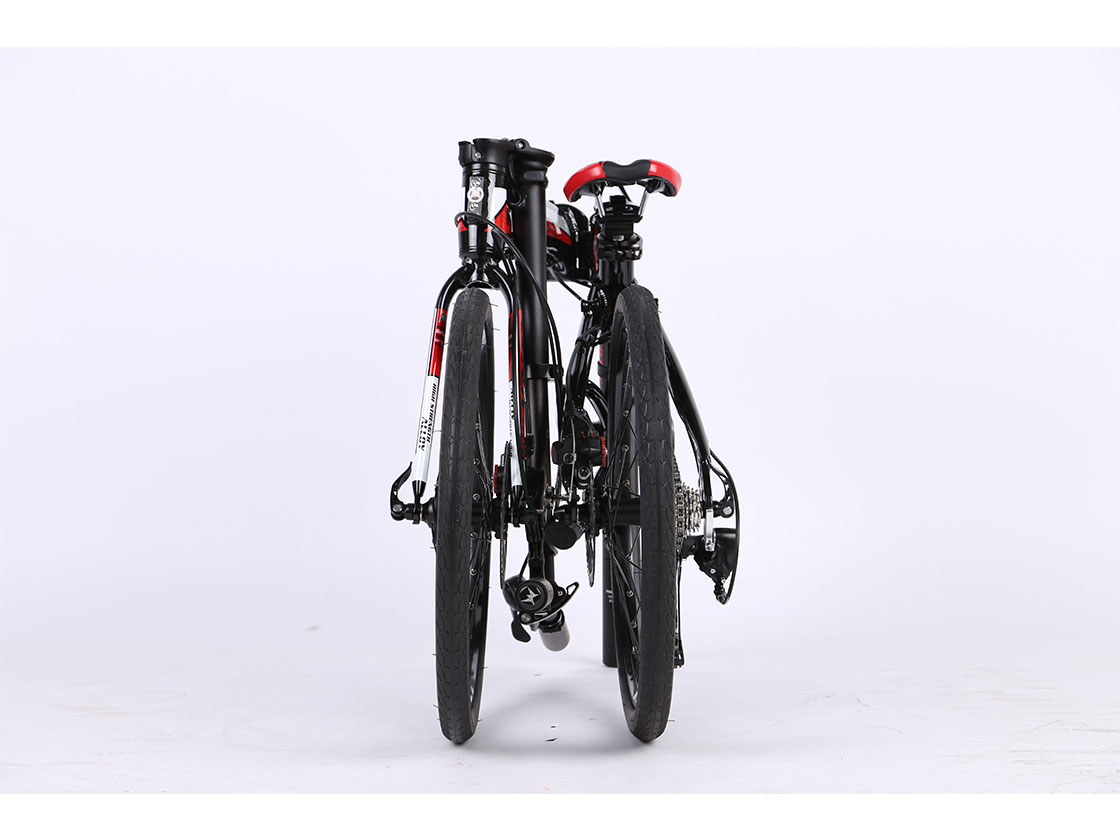

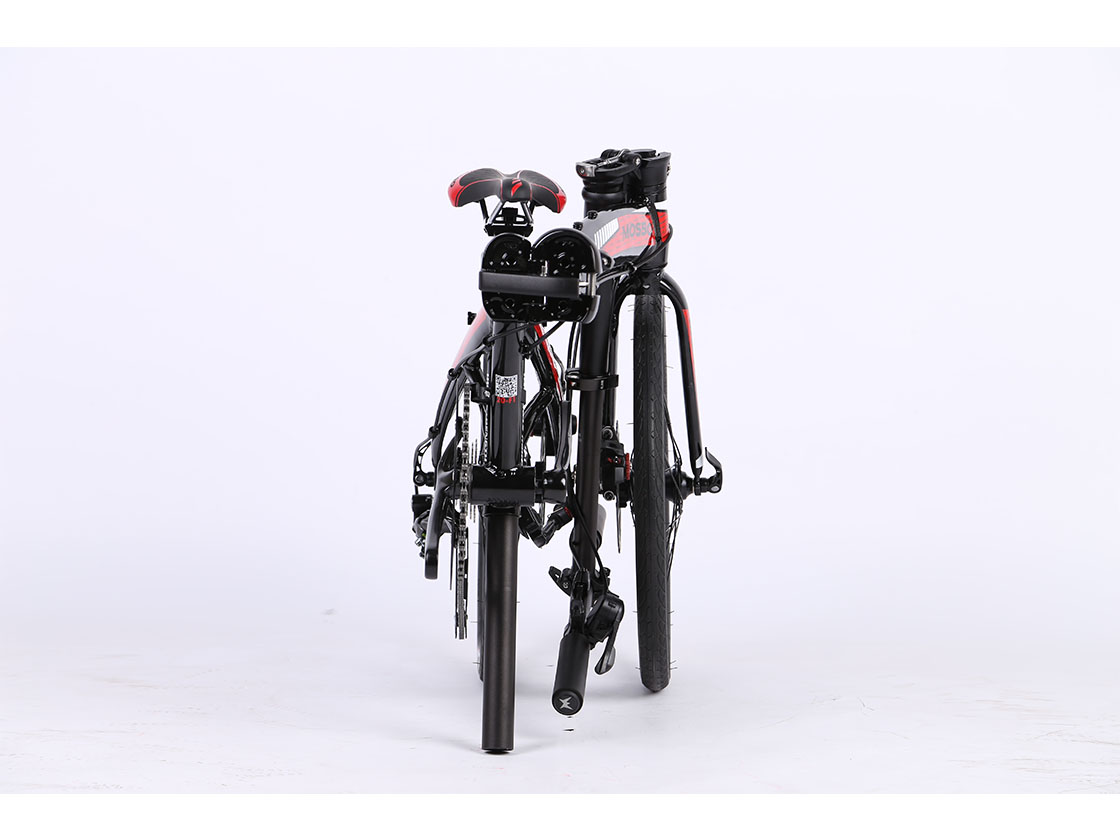

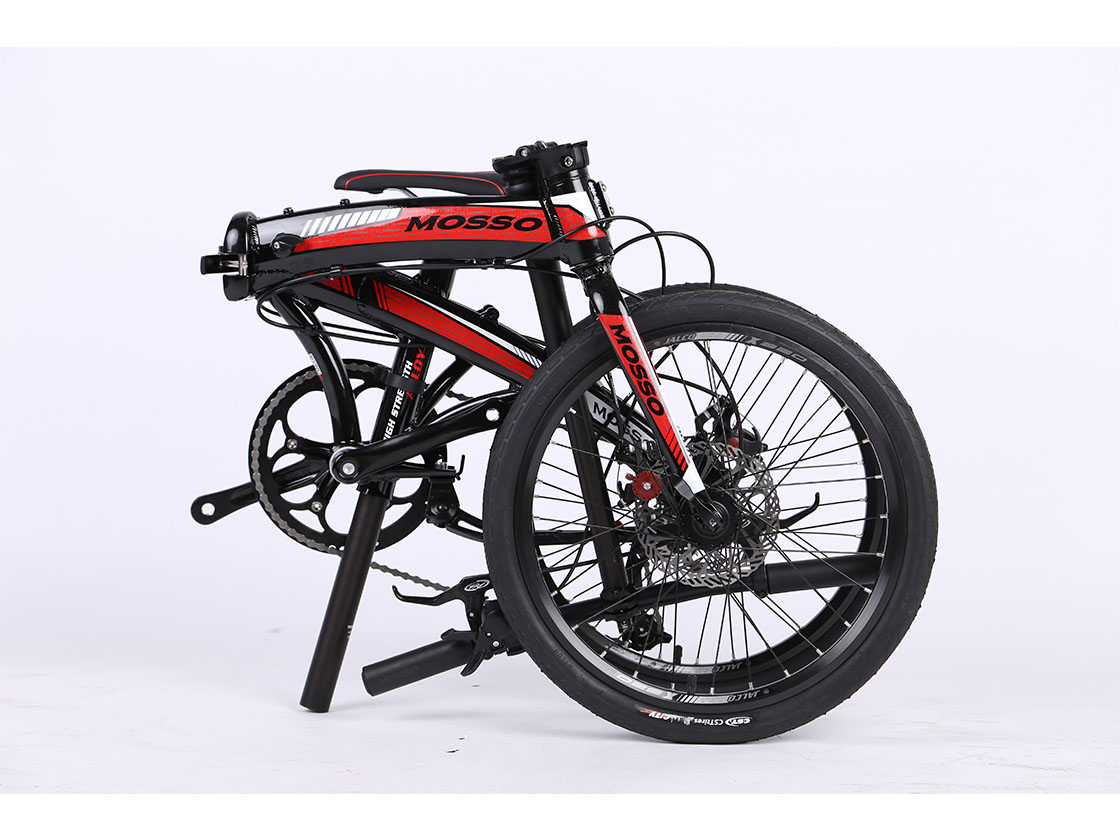

How to fold

A convenient folding mechanism to easily fold and unfold in 30 seconds movement

① Place crank and pedal in correct position

② Flip the seat post release lever and push saddle dowrword to the end

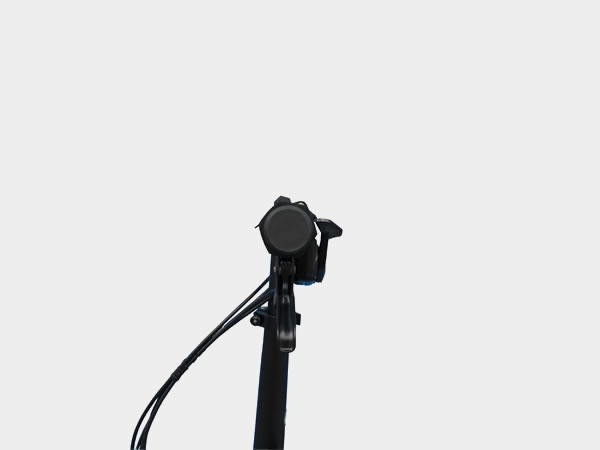

③ Flip the handle bar release lever and make sure the break lever face toward the ground

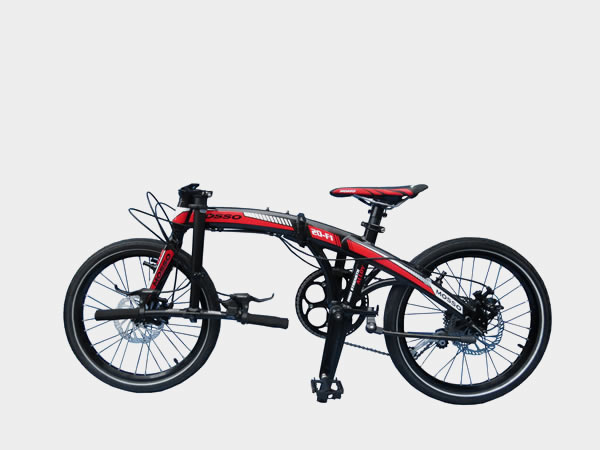

④ Flip the stem release lever and swing down

⑤ Flip the main release lever and swing backward
