BIKESeSmart Nexus
Mosso electric
Urban hunter
Color :

technology

From urban streets to forest trails, the Nexus e-bike will be your perfect companion for daily commuting and weekend adventures. Nexus combines elements of travel and sport, accompanying you on every adventurous journey.

Connecting health, environmental protection, and convenience as its core, the Nexus Urban Hunter combines exercise with electric power, creating a cutting-edge, high-performance e-bike. With the assistance of electric power technology, cycling becomes effortless and enjoyable.

Committed to creating the ideal choice for future commuting, Nexus allows you to experience endless fun exploring the city and nature.
Embrace technology and make cycling easy and enjoyable.

Specifications

Frame MOSSO eSmart Nexus
Fork EPXX suspension
Headset Mosso Super light MH4403
Rear Derailleur SHIMANO M2010 1*9
Brake SHIMANO MT200
Crankset CRANK 170mm* 38/42T
Cassette Shimano CS-HG201-9 11-36T 9SPEED
Handlebar Mosso AL-05，TUBRO Grips
Seat post Aluminum
Stem Mosso AL-05
Saddle Mosso SD-35 comfort
Front Wheels N/A
Motor DP MOTORS-80 250W
Battery Samsung 36V 20Ah 720Wh

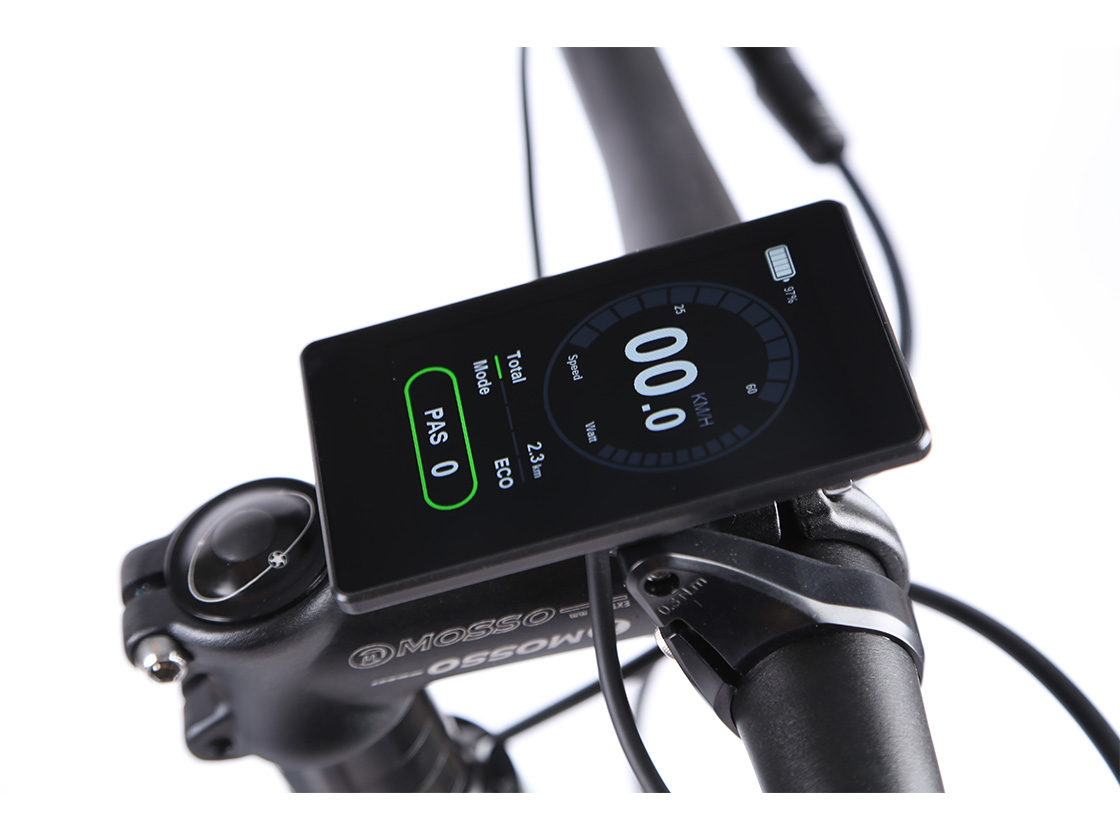

Display Speed level Lv1-Lv5 , Distance , Battery range , Speed
Tires MAXXIS 27.5*2.35C, F/V

Geometry

SIZE 15.5" 17"
1 - SEAT TUBE (mm) 395mm 432mm
2 - SEAT ANGLE (mm) 73° 73°
3 - TOP TUBE (mm) 590 590
4 - HEAD TUBE (mm) 130 130
5 - HEAD ANGLE (mm) 70° 70°
6 - BB DROP (mm) 50 50
7 - FORK LENGTH (mm) 490 490
10 - CHAINSTAY(mm) 465 465
11 - WHEELBASE(mm) 1111 1111

GAllery
