ROAD701ART
Only passion in 7005
High strength
Color :

technology

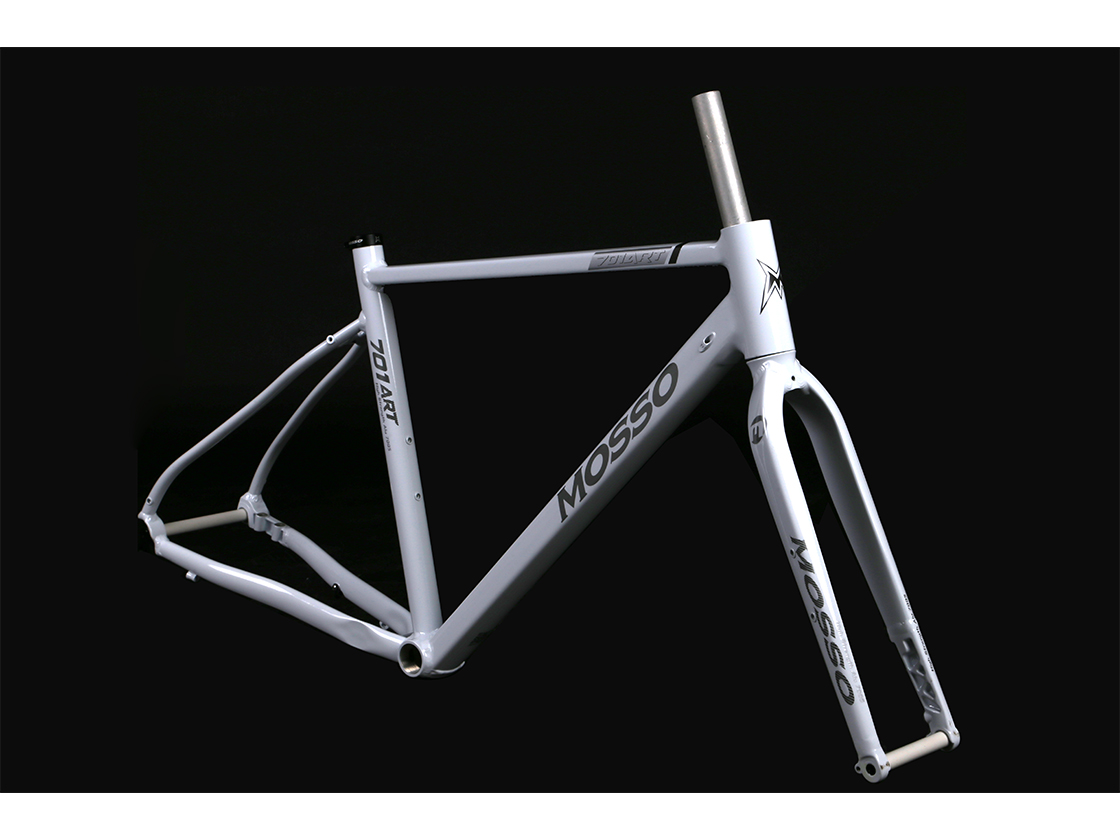

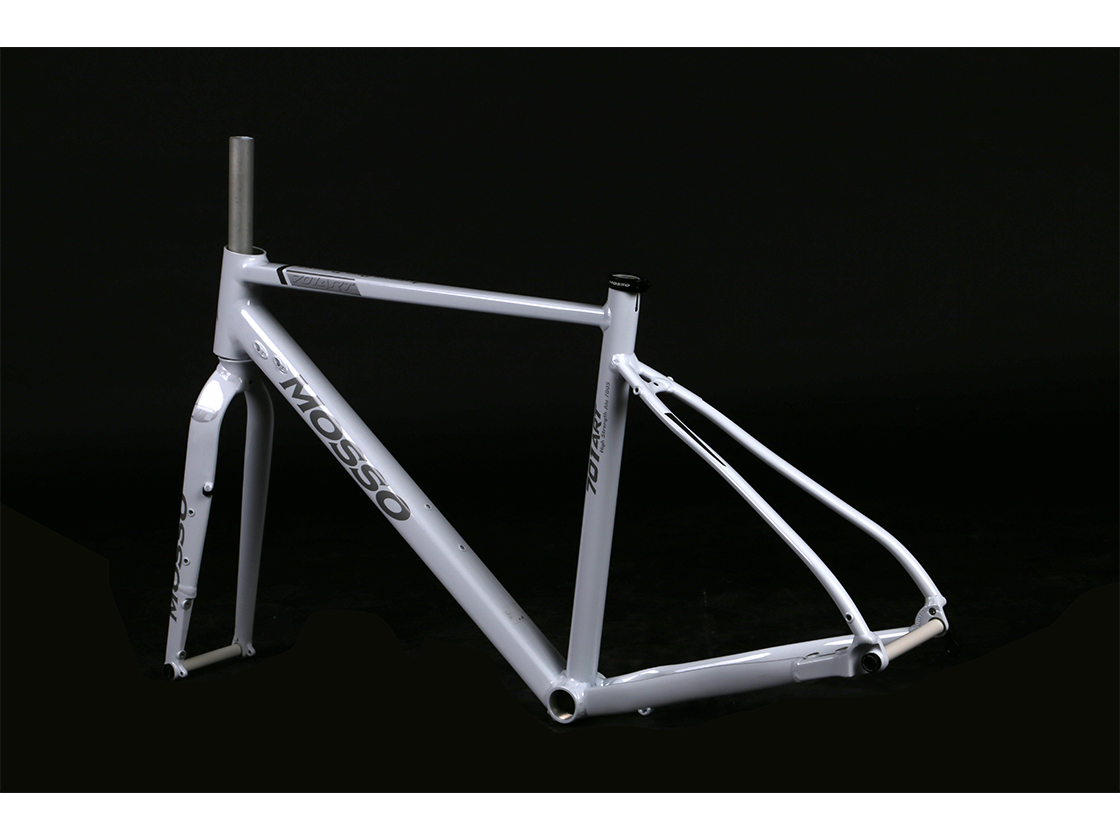

The frame is built using high-strength 7-series aluminum alloy material. Ensuring the exceptional stability and durability but also save your budget, 701ART comes equipped with our unique 7005 aluminum fork, in order to maintain the best riding performance for you. We welcome you to choose our frame, making your cycling journey smoother, more comfortable, and enjoyable.

Specifications

Sizeframe WeightFork weightBB lengthSeat postSeat clampHead set
450mm-540mm 1660g/450mm 800g 68mm 31.6mm 34.9mm 44/44mm

Characteristic

SizeMATERIALTYPETYPE FOR USEPRICE
700C Alu 7005 Road Disc Life Training $$$


Geometry

SIZE 450 480 510 540
1 - SEAT TUBE (mm) 450 480 510 540
2 - SEAT ANGLE (mm) 74° 74° 73.5° 73°
3 - TOP TUBE (mm) 528.8 557.5 564.7 575.4
4 - HEAD TUBE (mm) 110 130 145 155
5 - HEAD ANGLE (mm) 70.0° 70.5° 71° 71.5°
6 - BB DROP (mm) 65 65 65 65
7 - FORK LENGTH (mm) 397 397 397 397
8 - REACH (mm) 378 395 398 400
9 - STACK (mm) 526 548.6 562.8 573.8
10 - CHAINSTAY(mm) 415 415 415 415
11 - WHEELBASE(mm) 1003.6 1018.8 1026.9 1027.6
12 - TIRES MAXIMUM 32C 32C 32C 32C
RECOMMENDATION
Height recommendations for guidance only. Individual body types are different, check your perfect body shape and choose the ideal frame size!
.

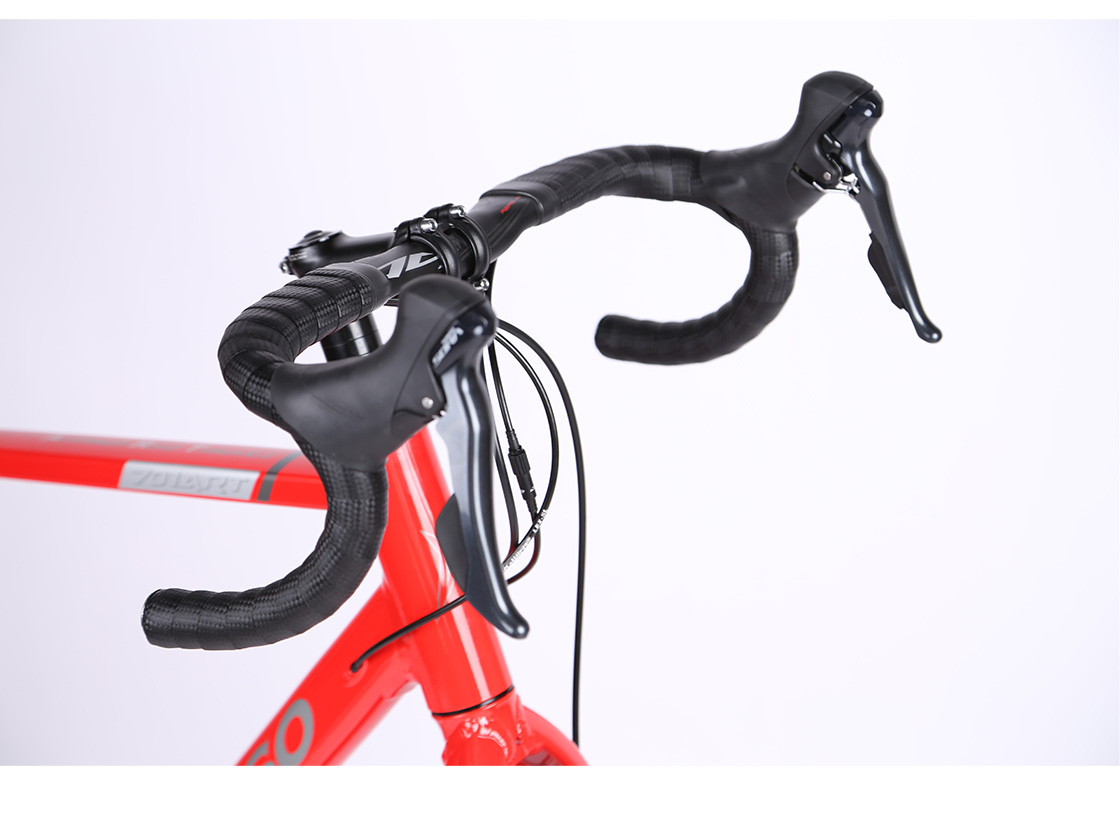

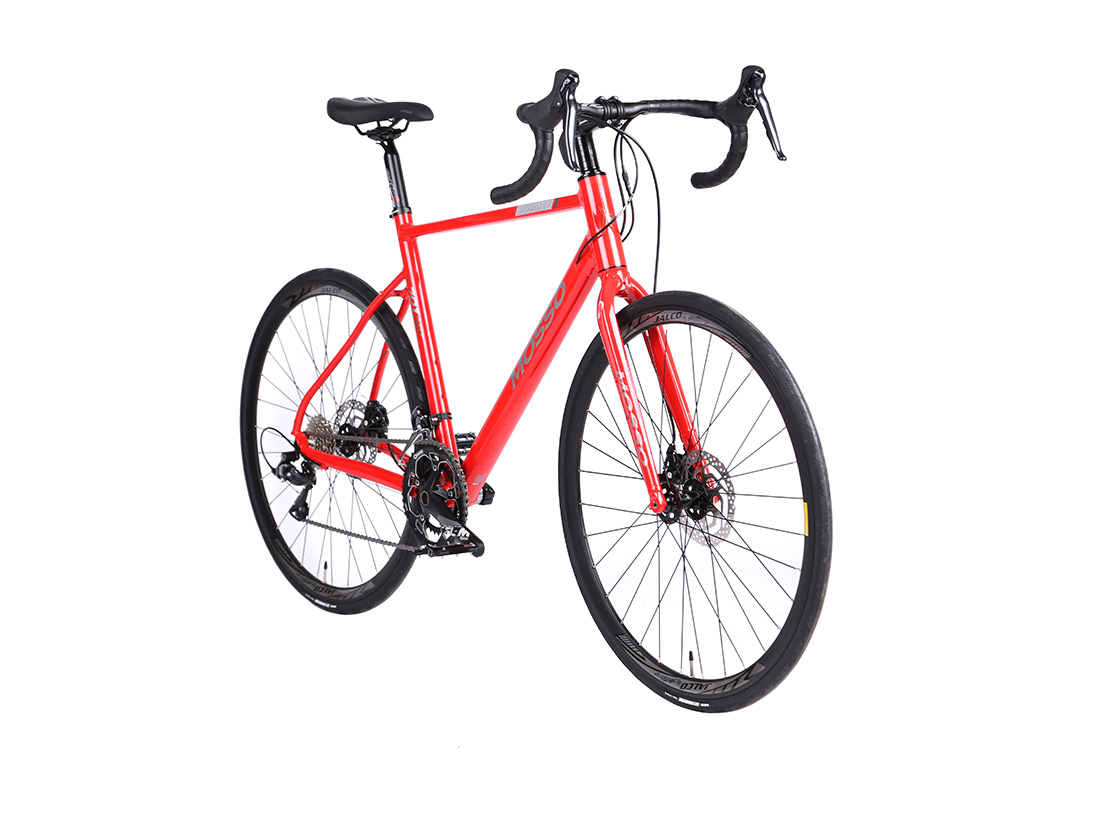

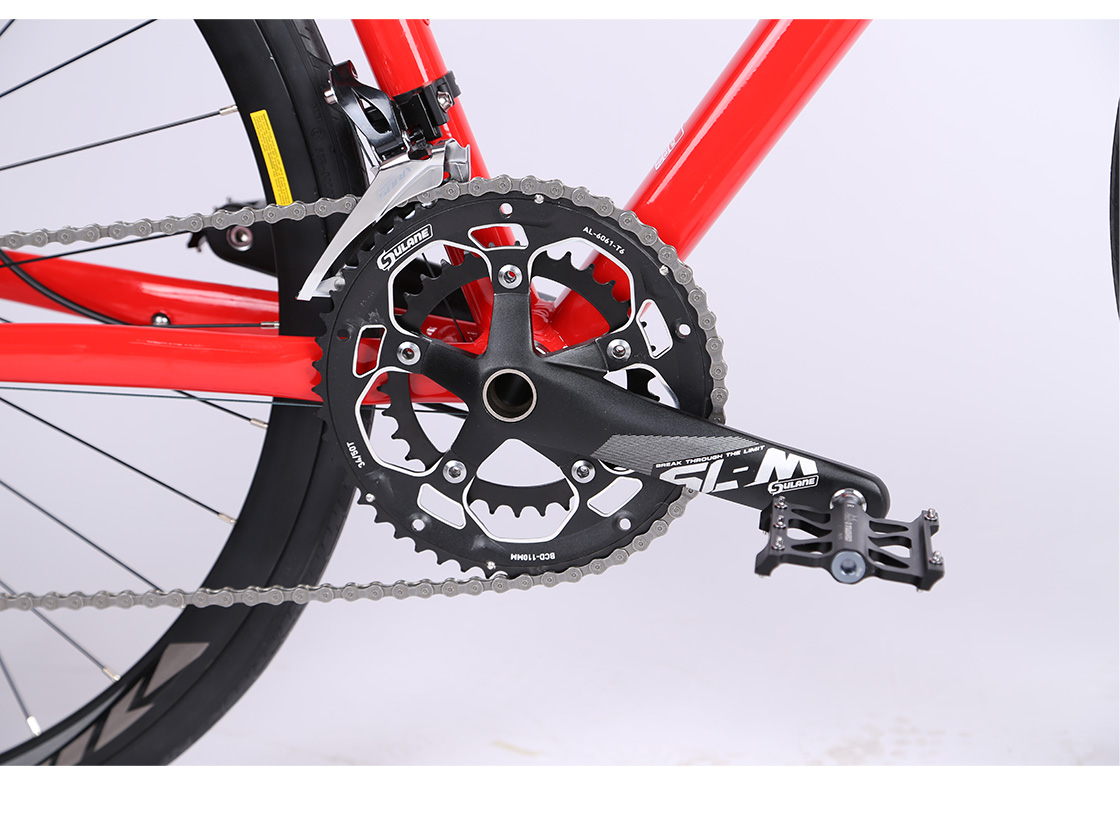

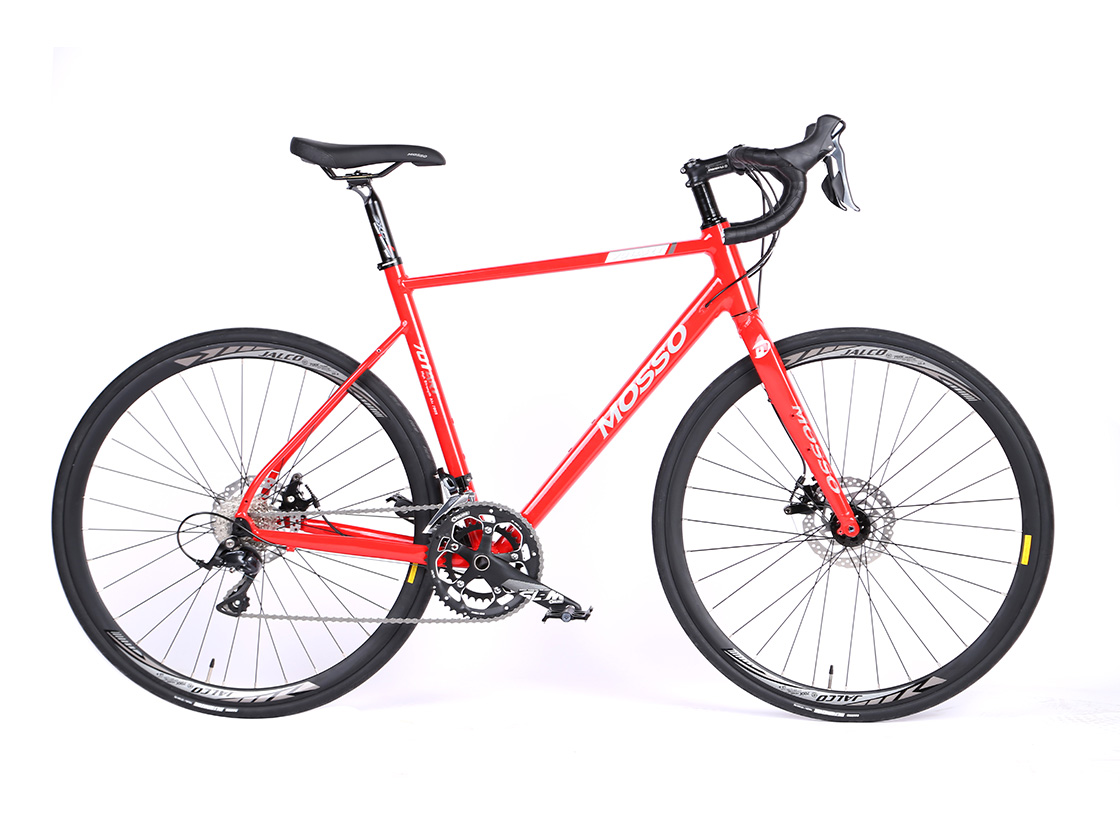

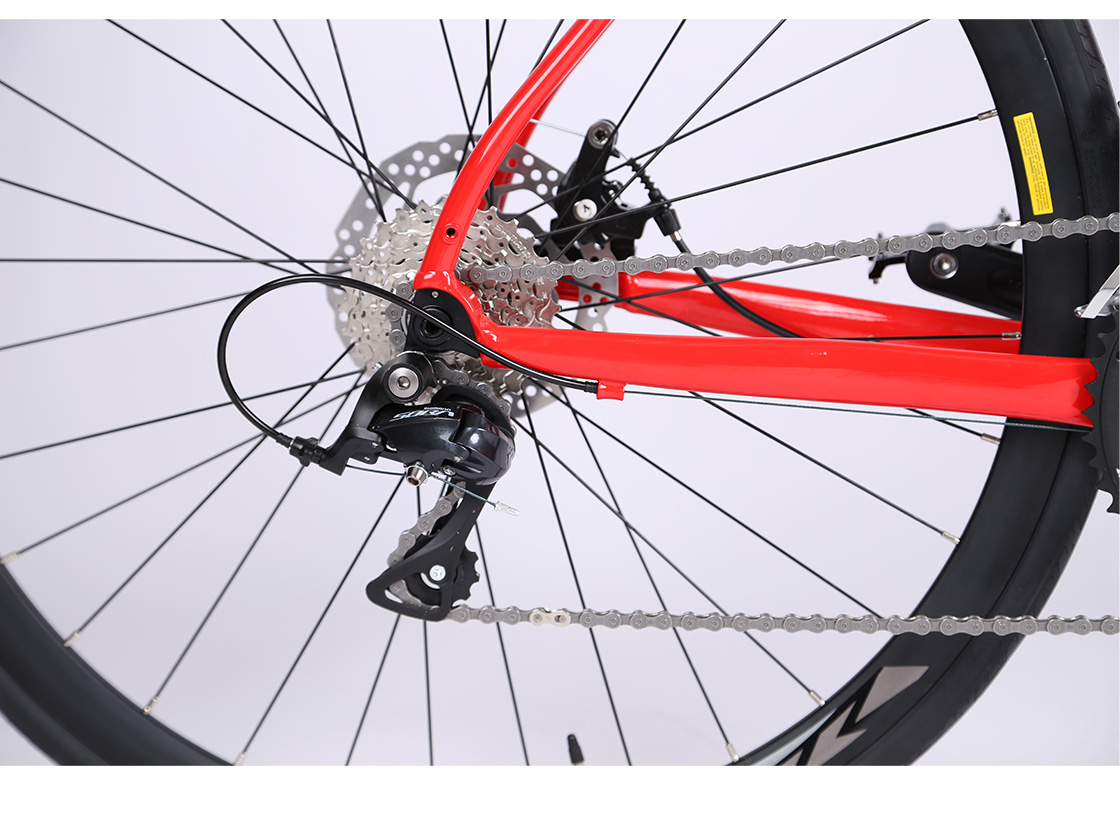

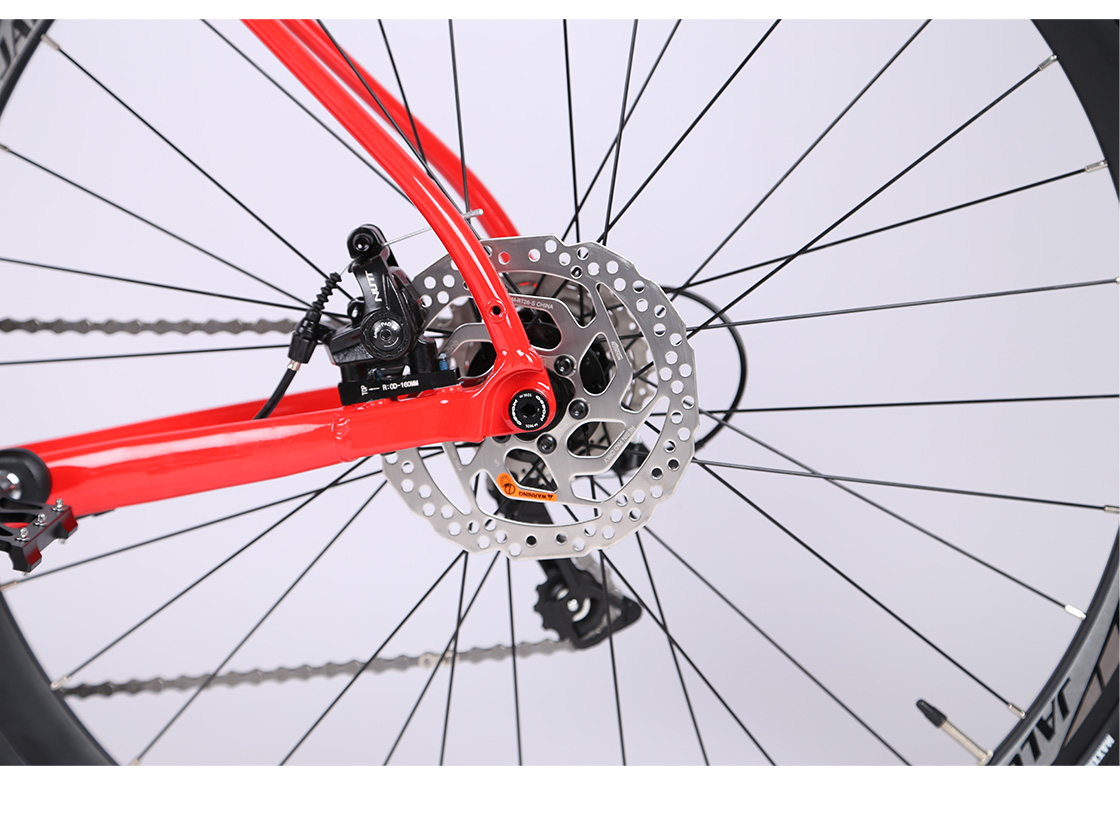

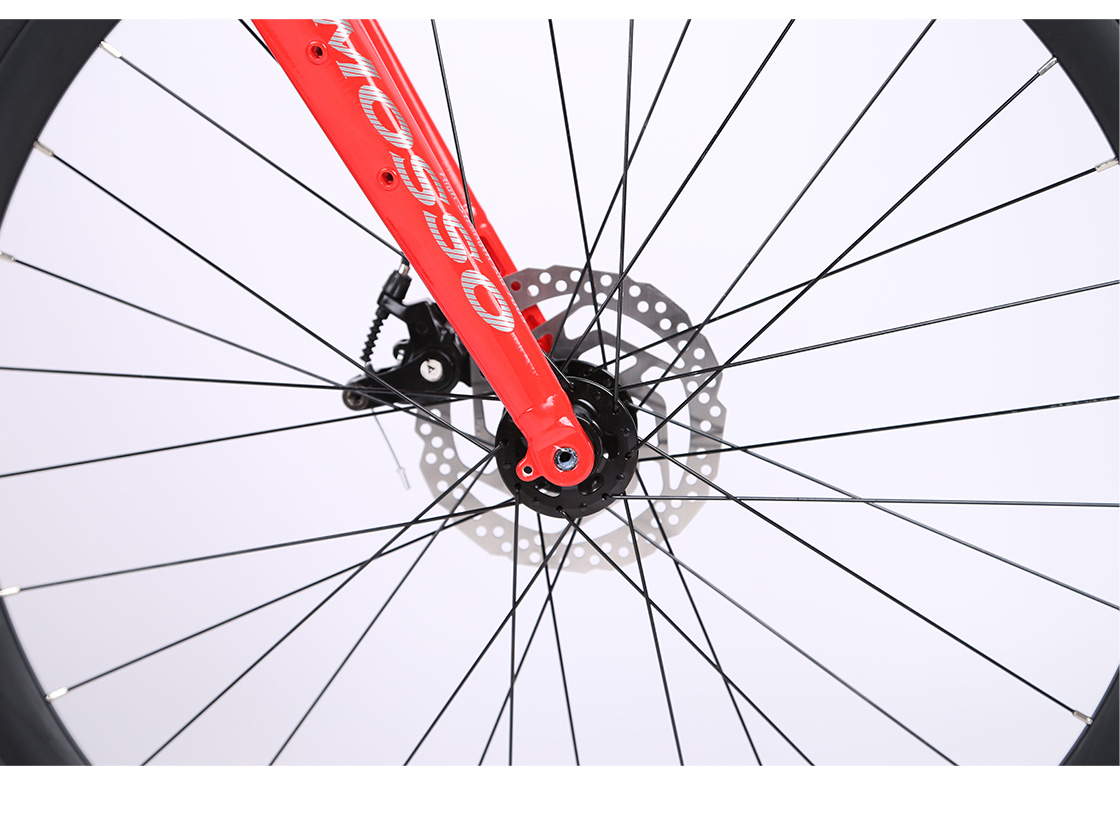

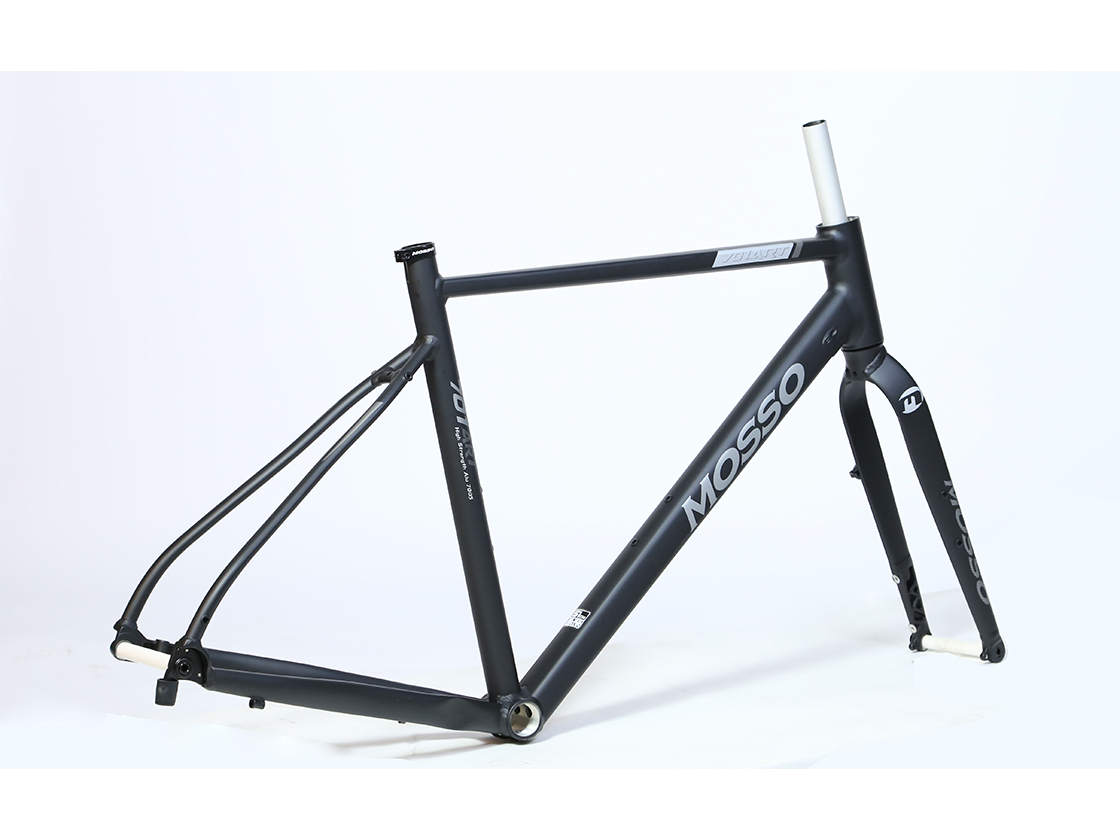

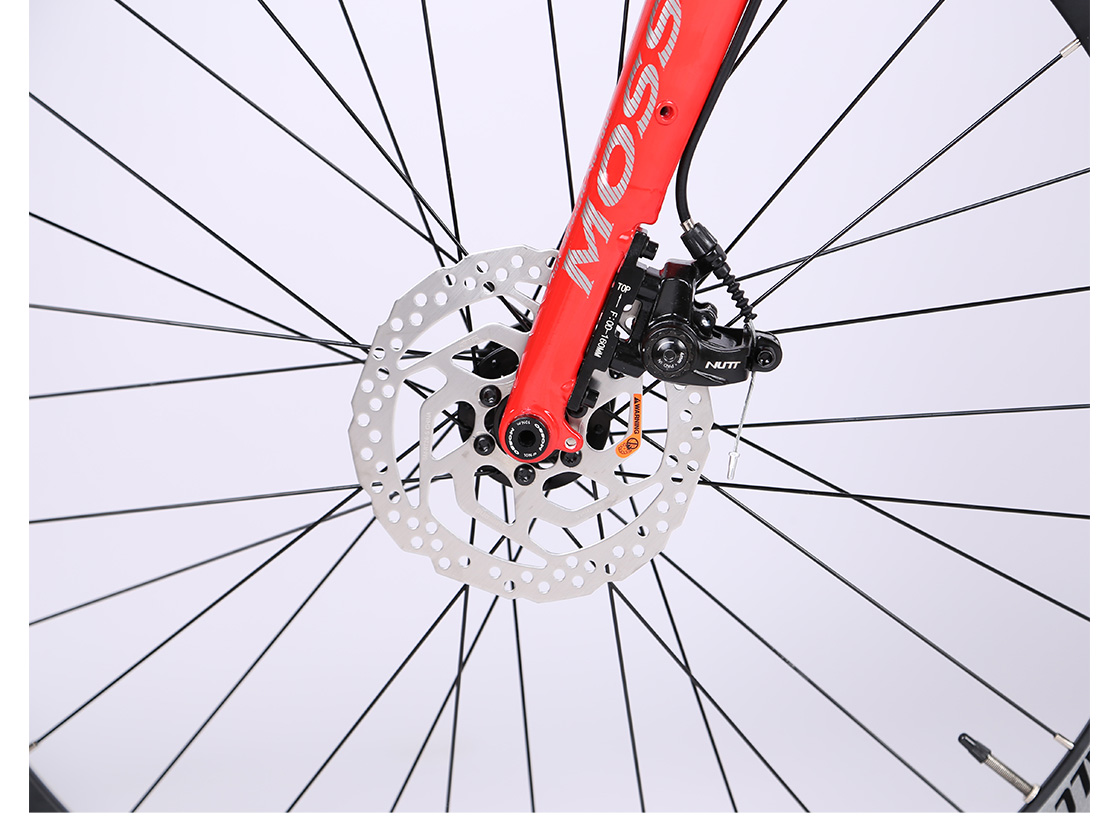

GAllery

701ART

701ART

701ART

701ART

701ART

DISPLAY
