ROAD736CB

The Attacker! T47 BB

technology

Clever geometry and simple curves maintain the most classic diamond model, comfortable and intuitive form. In order to satisfy the perfect riding feeling, the design of weight, durability, and style has been carefully balanced. The 736CB is a new structure in our product line, and all you need is an extraordinary adventure.

Specifications

Size	Frame weight	Fork weight	BB length	Seat post	Seat clamp	Head set
440mm-610mm	820g	400g	86mm/T47*1.0	27.2mm	31.8mm	42/52

Characteristic

Size	MATERIAL	TYPE	TYPE FOR USE	PRICE
700C	Full Carbon	Road Disc	High Performance	$$$$$

Geometry

SIZE	XXS	XS	S	M	L	XL	XXL
1 - SEAT TUBE (mm)	400mm	431mm	462mm	481mm	504mm	532mm	567mm
2 - SEAT ANGLE (mm)	76°	75.5°	74°	74°	73.5°	73.5°	73°
3 - TOP TUBE (mm)	490	507	530.5	540	562	576.5	595
4 - HEAD TUBE (mm)	102	109	120	137	157	184	204
5 - HEAD ANGLE (mm)	70.5°	71.75°	72.5°	73°	73.5°	73.5°	74°
6 - BB DROP (mm)	74	74	74	72	72	72	72
7 - FORK OFFSET (mm)	47	47	47	44	44	44	44
8 - REACH (mm)	365	375	380	385	395	402	408
9 - STACK (mm)	502	513	526	543	564	590	611
10 - CHAINSTAY(mm)	410	410	410	410	410	410	410
11 - TIRES	Max 30C	Max 30C	Max 30C	Max 30C	Max 30C	Max 30C	Max 30C

RECOMMENDATION

Check your perfect body shape and choose the ideal frame size!

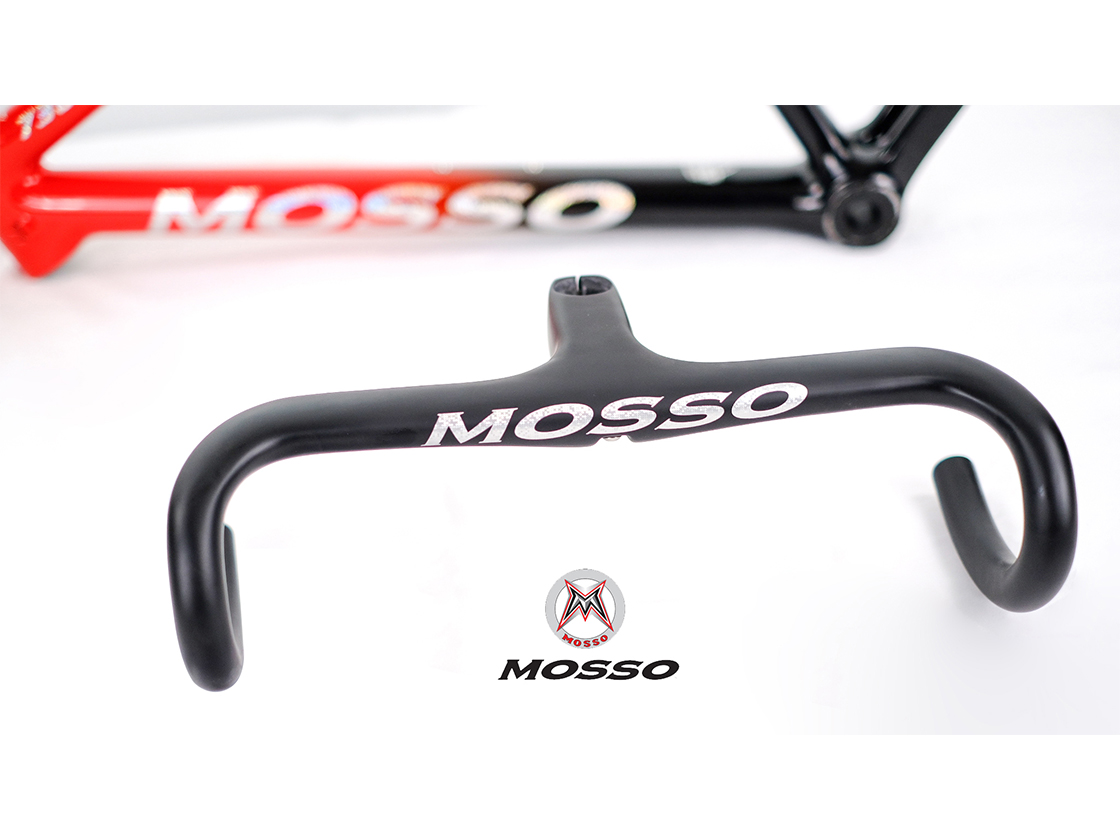

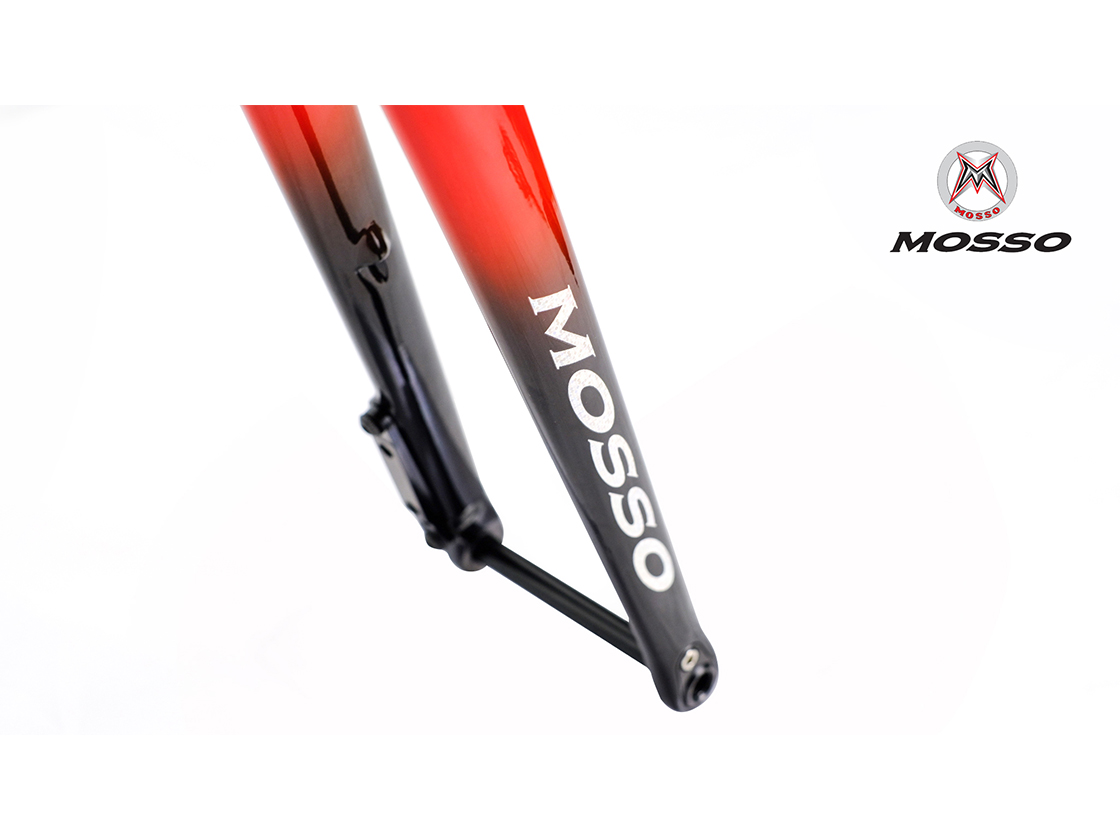

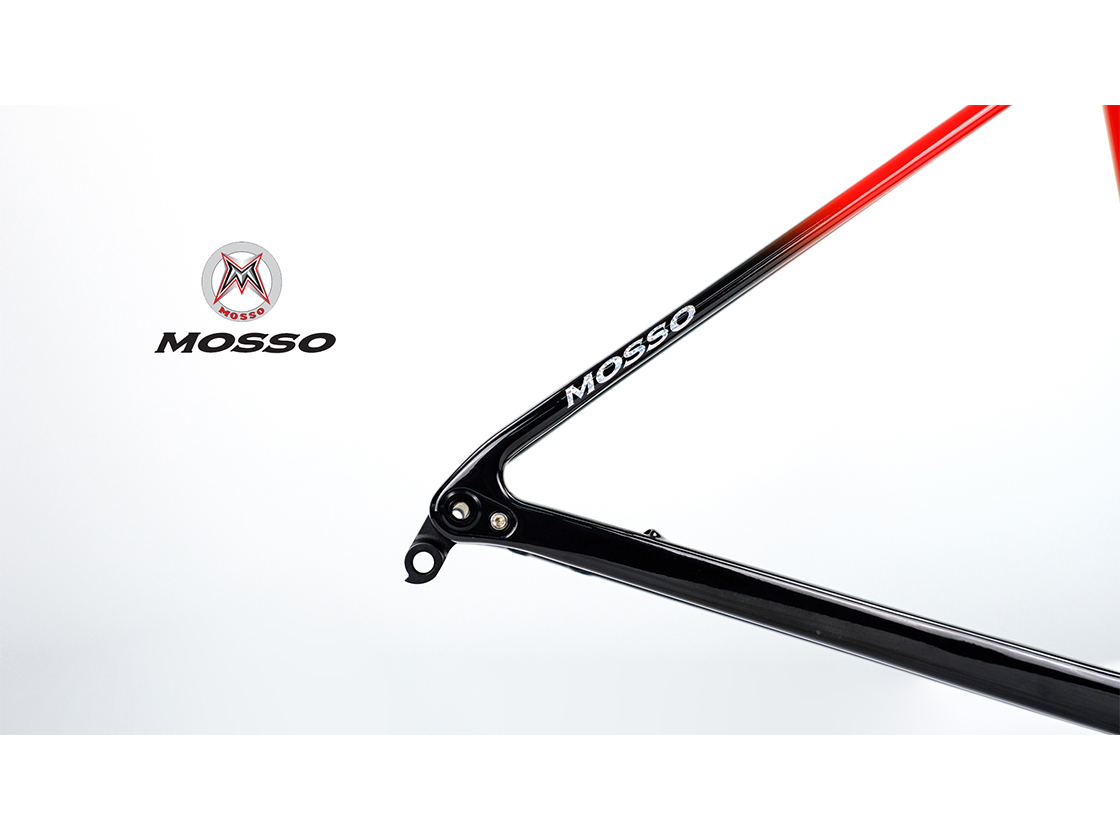

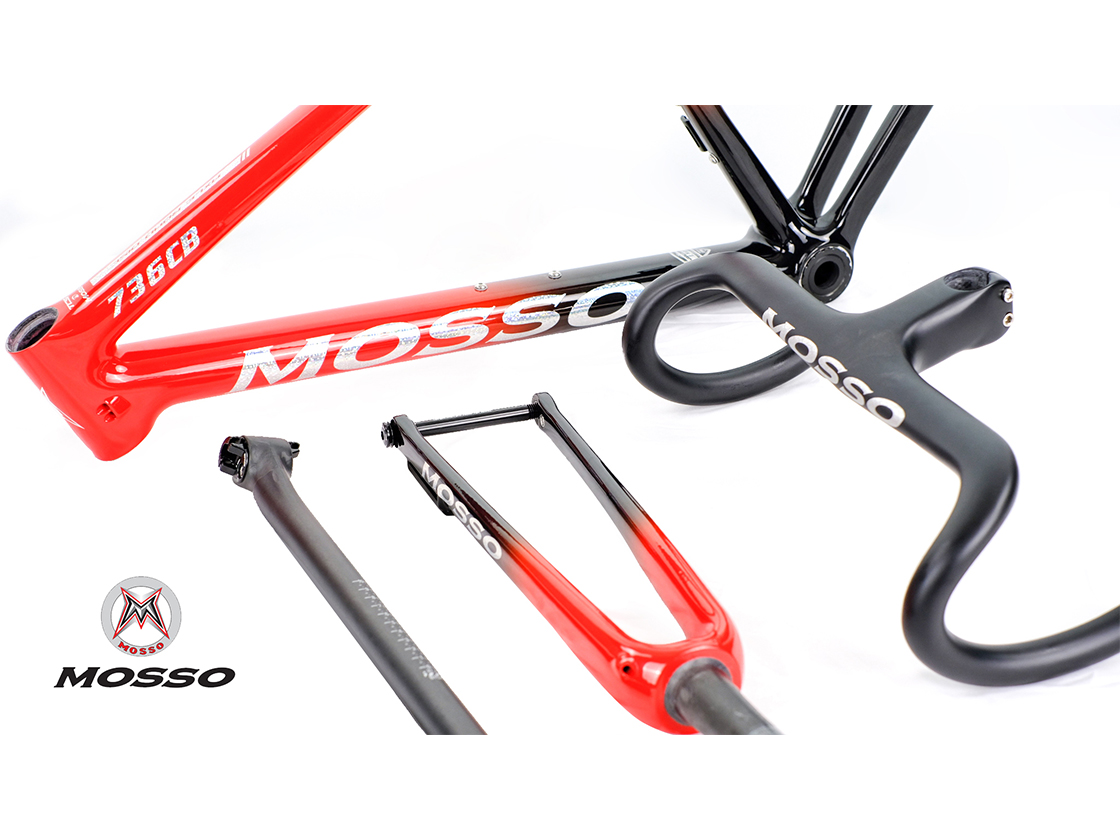

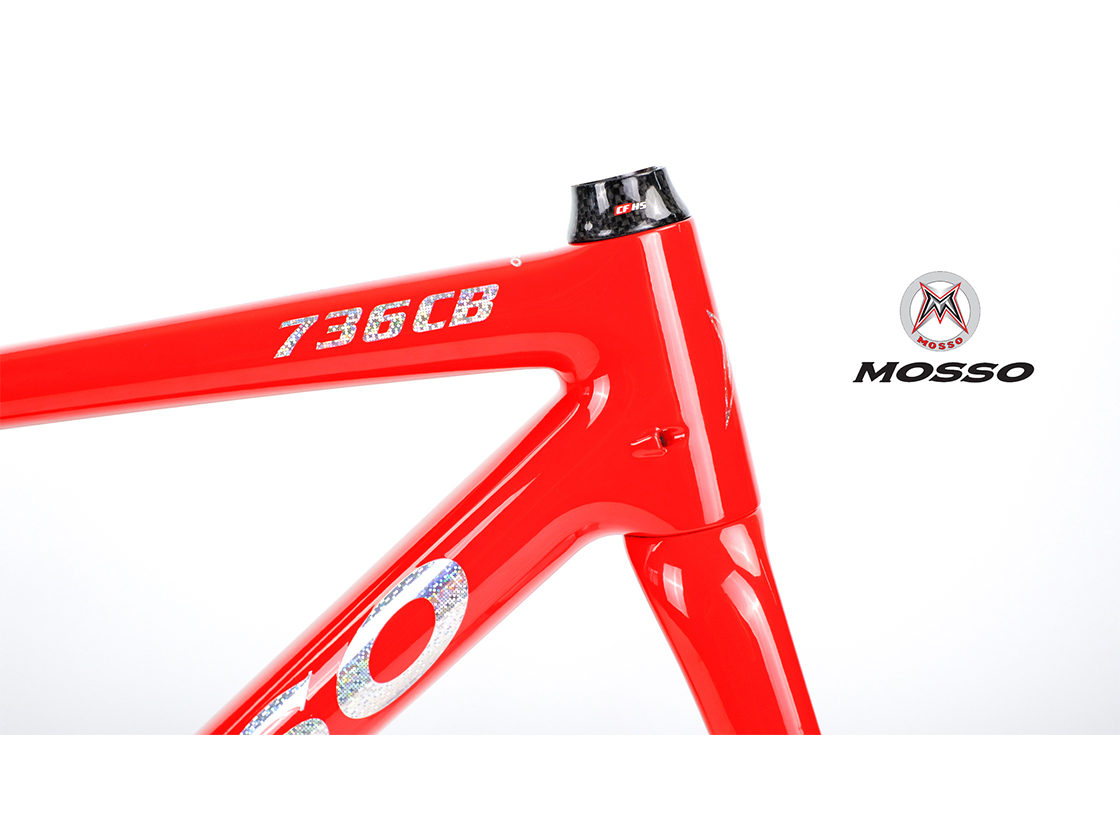

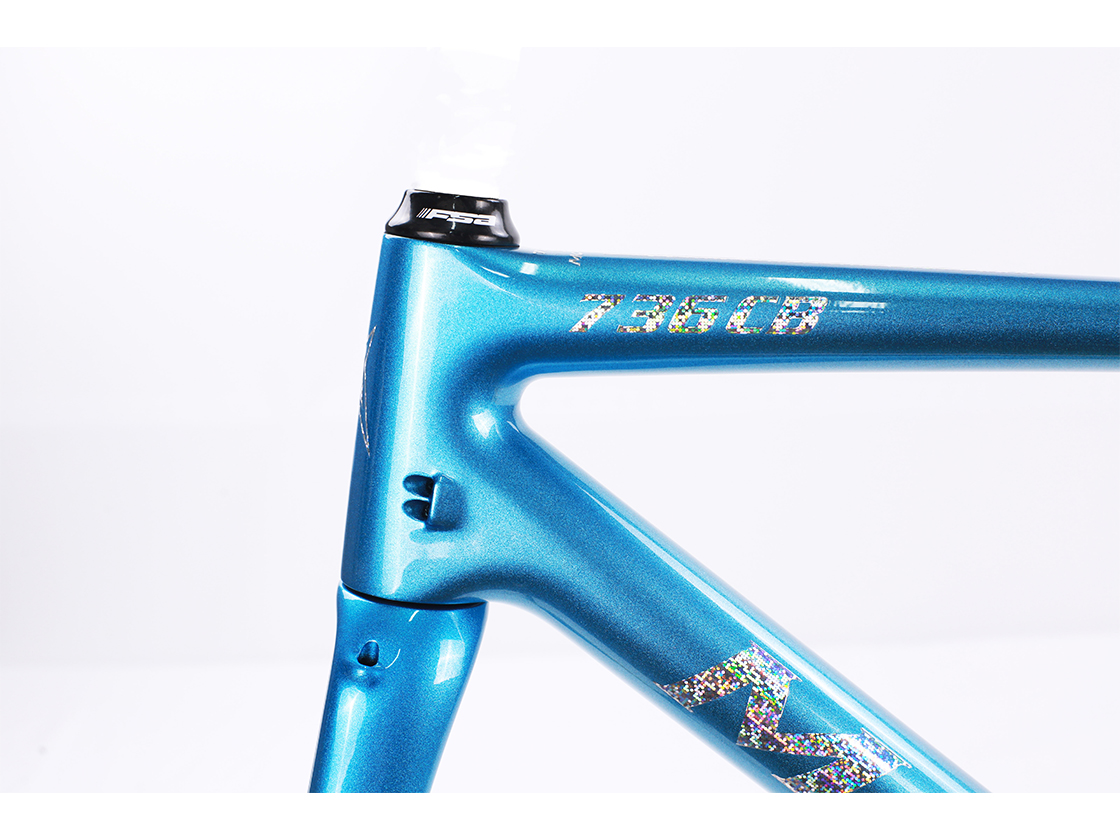

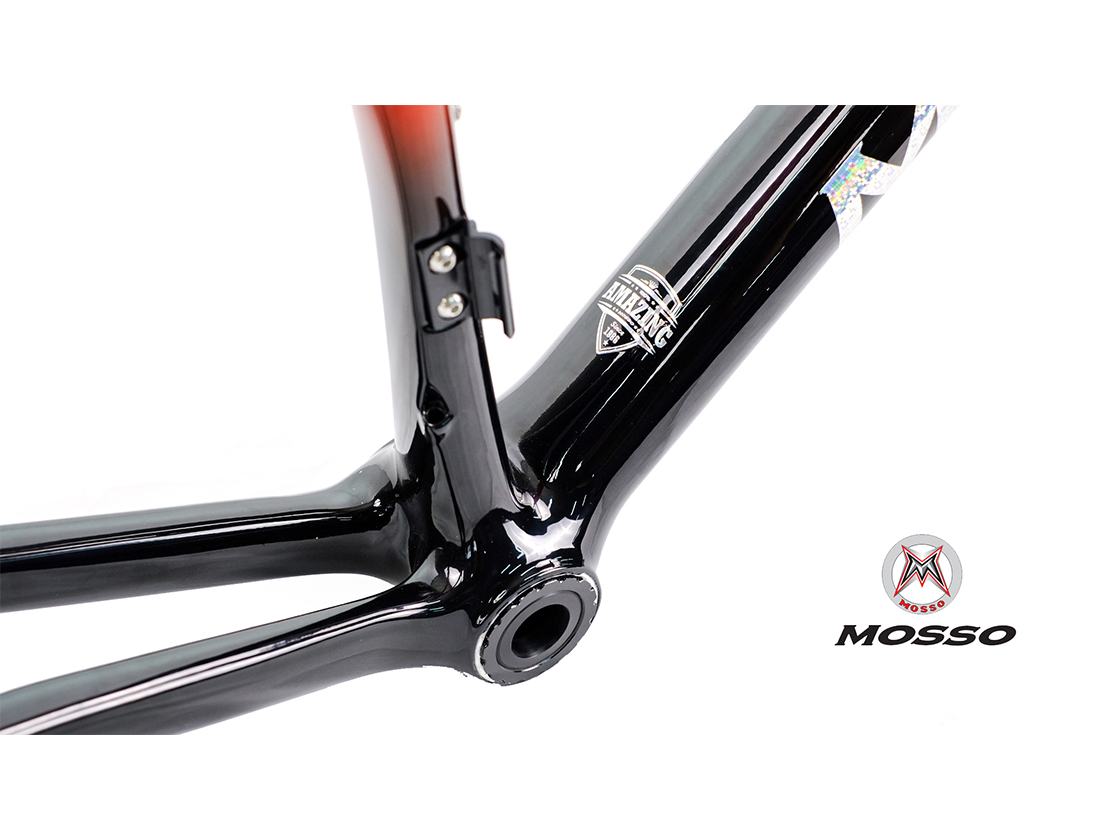

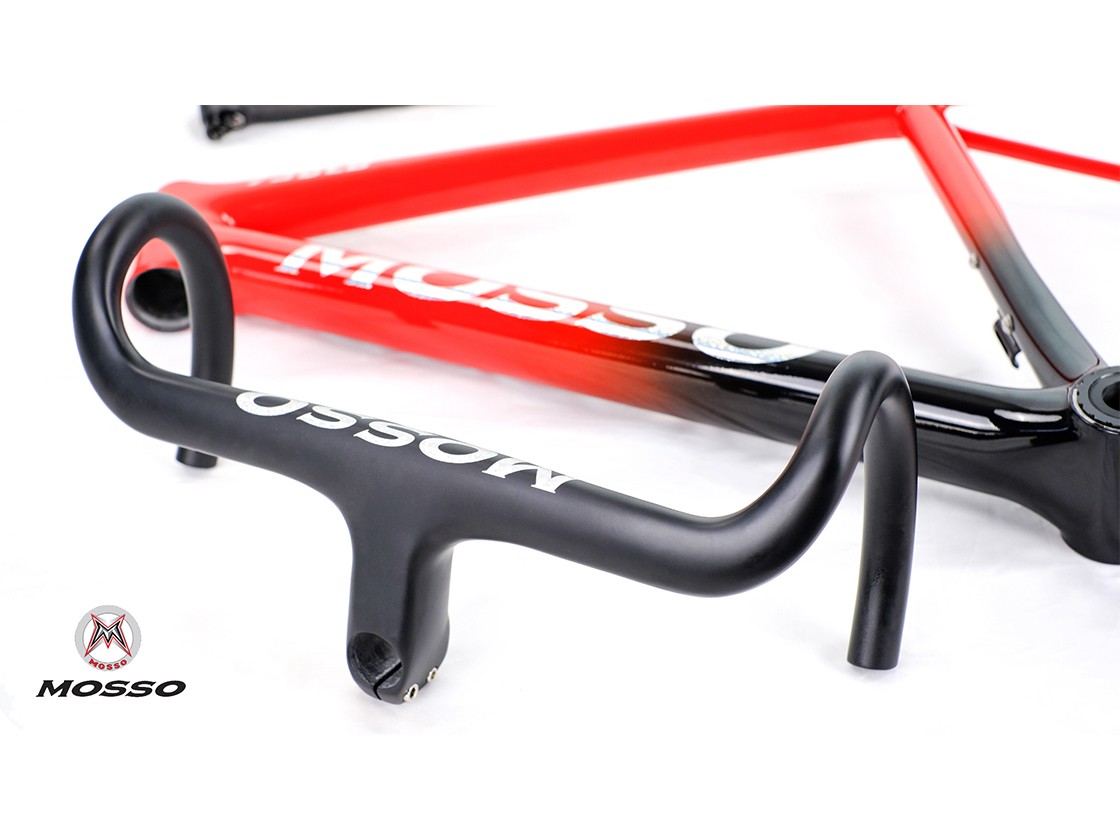

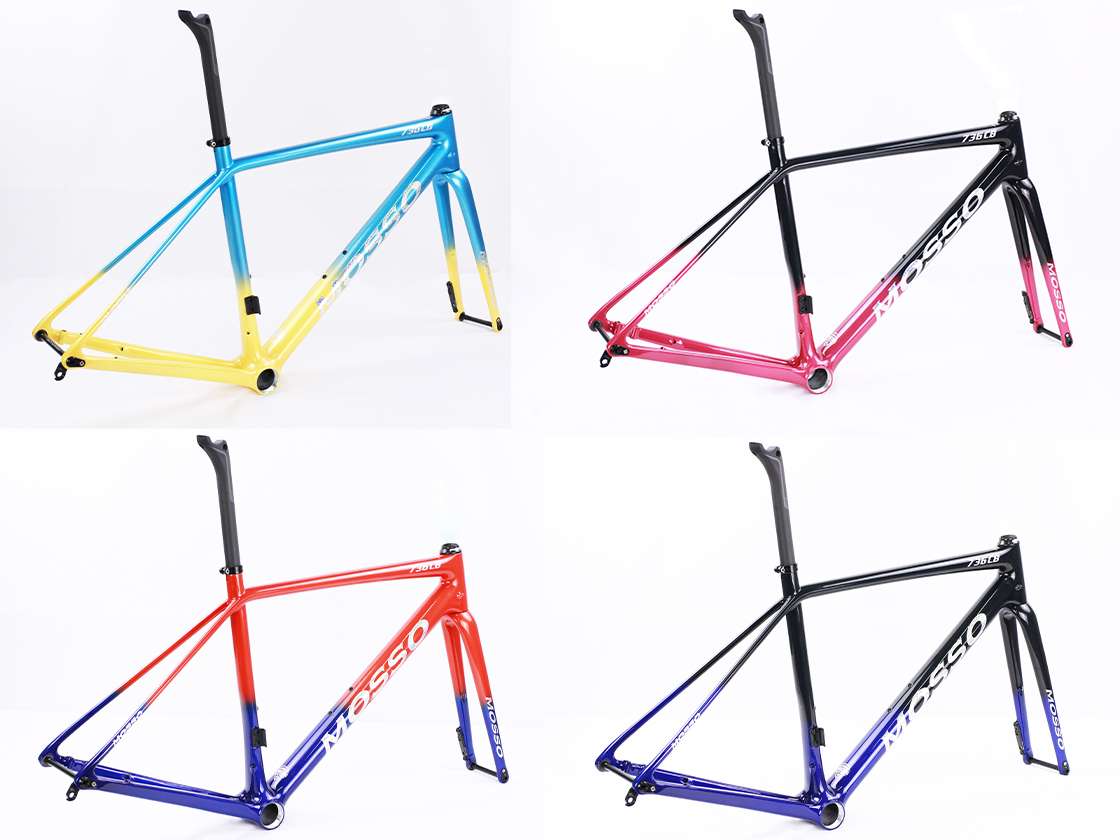

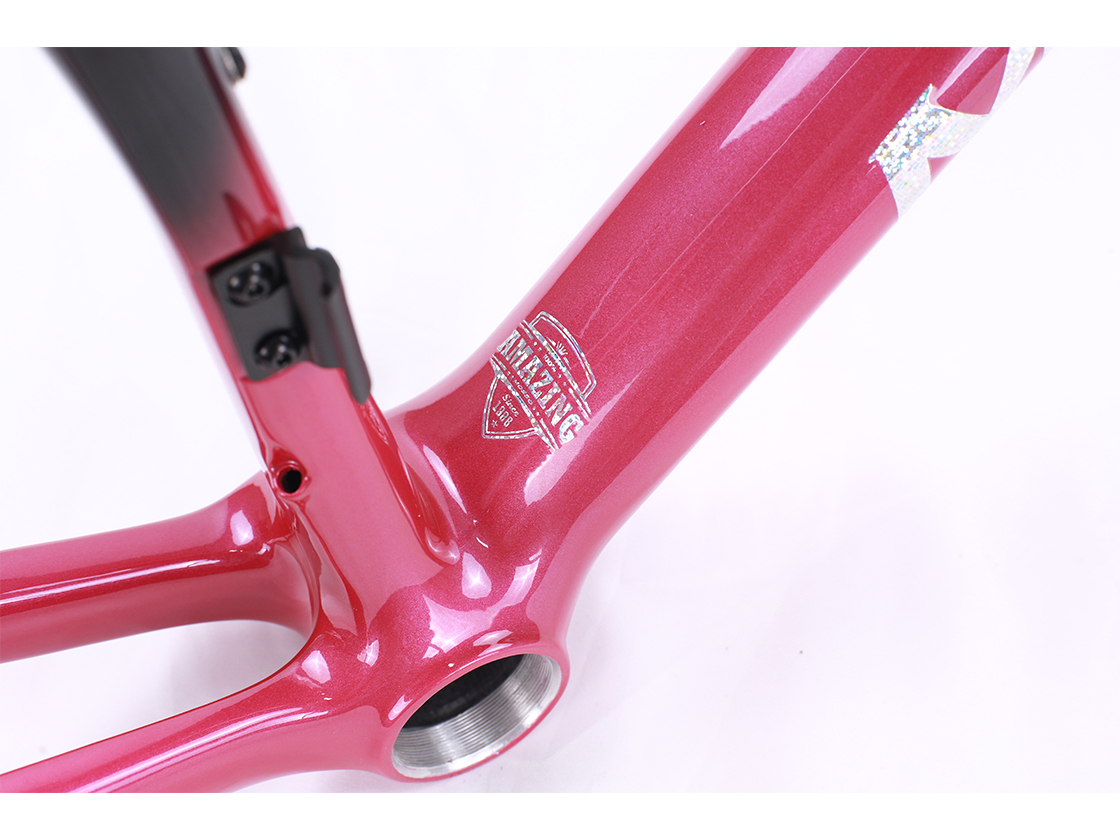

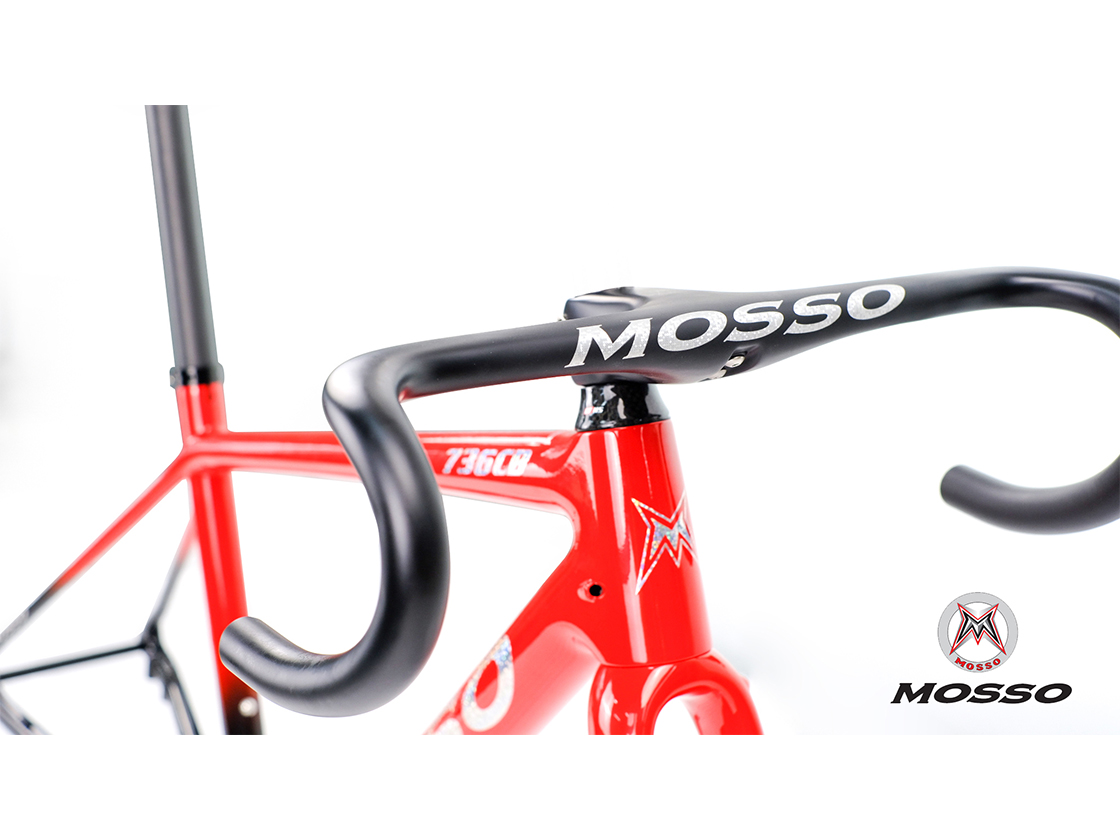

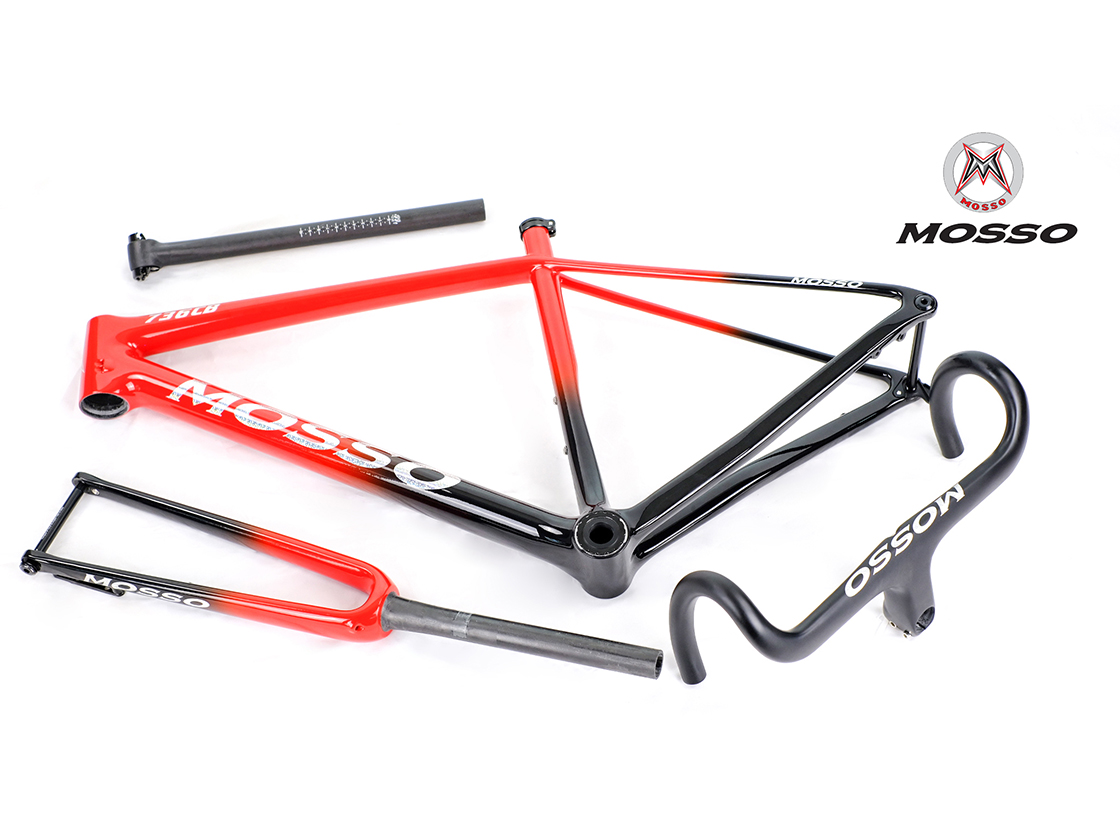

GAllery

736CB
