ROAD790GVL
Be Unique
Super Agile Ride
in Mosso 7046
Color :

technology


Weight be much lighter, getting better stiffness however. Road 790PRO from 1st generation of aluminum 7046, it ushered the aluminum frame to a new age. Nowadays it will once again create a new legendary adventure for you. "All new super light gravel 790GVL", plus slick frame features and a smooth ride, you can pedal it and be happy - anywhere and everywhere, not just on traveling.

Specifications

Sizeframe WeightFork WeightBB lengthSeat postSeat clampHead set
440mm-560mm 1.45Kg/470mm 0.48Kg 86mm 27.2mm 31.8mm 42/52mm

Characteristic

SizeMATERIALTYPETYPE FOR USEPRICE
700C ALU 7046 Gravel Super Agile Ride $$$$$


Geometry

SIZE 440mm 470mm 500mm 530mm 560mm
1 - SEAT TUBE (mm) 440 470 500 530 560
2 - SEAT ANGLE (mm) 75° 75° 75° 75° 75°
3 - TOP TUBE (mm) 505 520 525 540 560
4 - HEAD TUBE (mm) 110 110 130 140 160
5 - HEAD ANGLE (mm) 71° 71° 71° 71° 71°
6 - BB DROP (mm) 65 65 65 65 65
7 - FORK LENGTH (mm) 397 397 397 397 397
8 - REACH (mm) 363 377.8 377.7 390.2 405.1
9 - STACK (mm) 530.7 530.7 549.6 559.1 578
10 - CHAINSTAY(mm) 430 430 430 430 430
11 - WHEELBASE(mm) 996 1011 1017 1033 1054
12 - TIRES MAXIMUM 45C 45C 45C 45C 45C
RECOMMENDATION
Height recommendations for guidance only. Individual body types are different, check your perfect body shape and choose the ideal frame size!

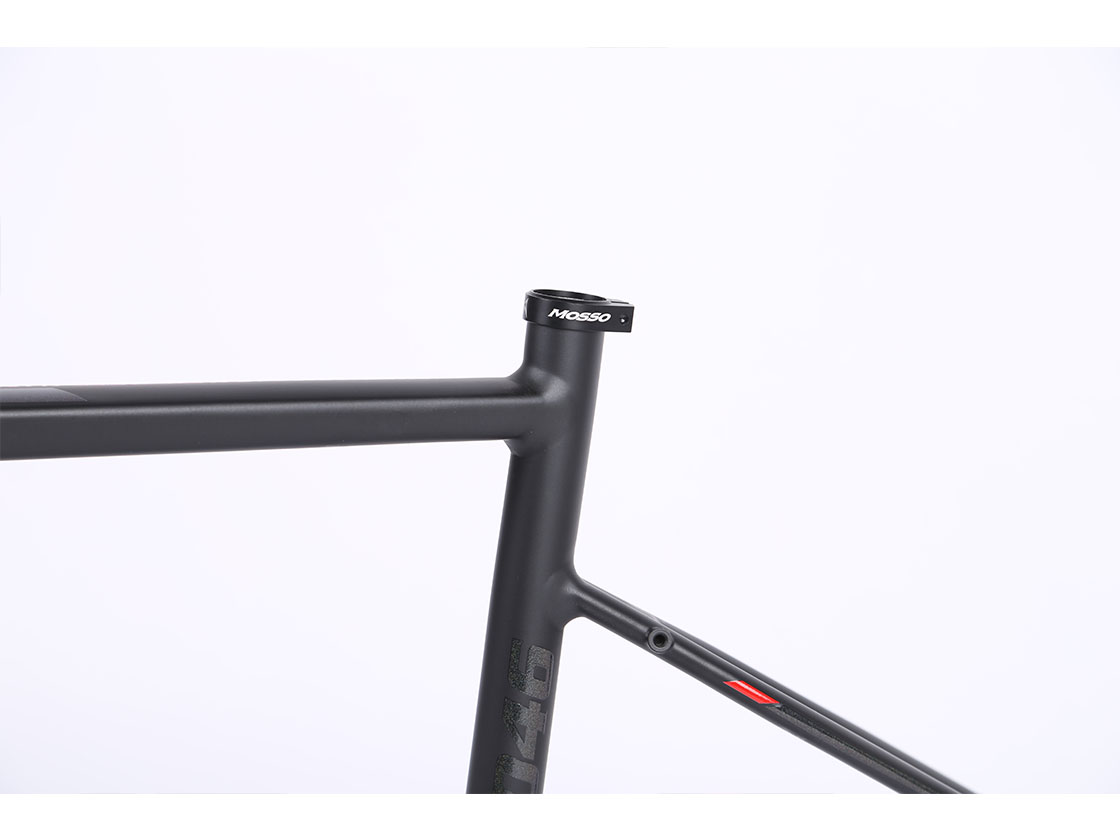

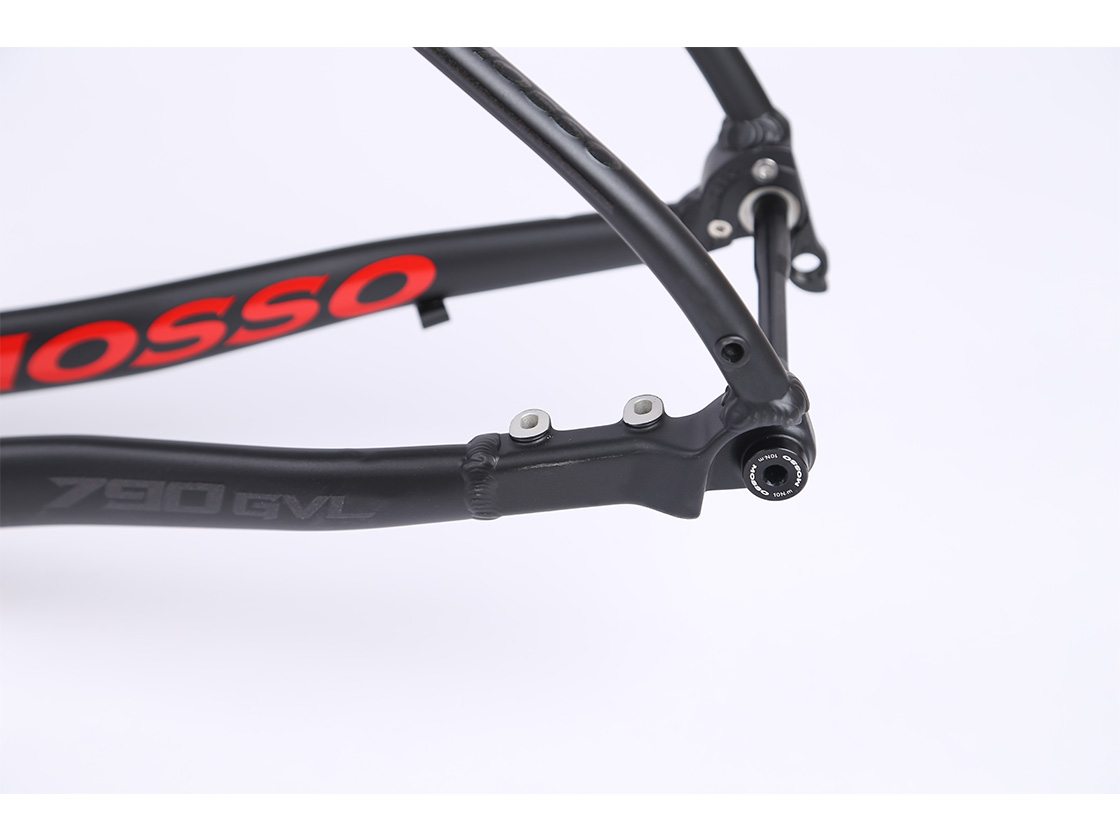

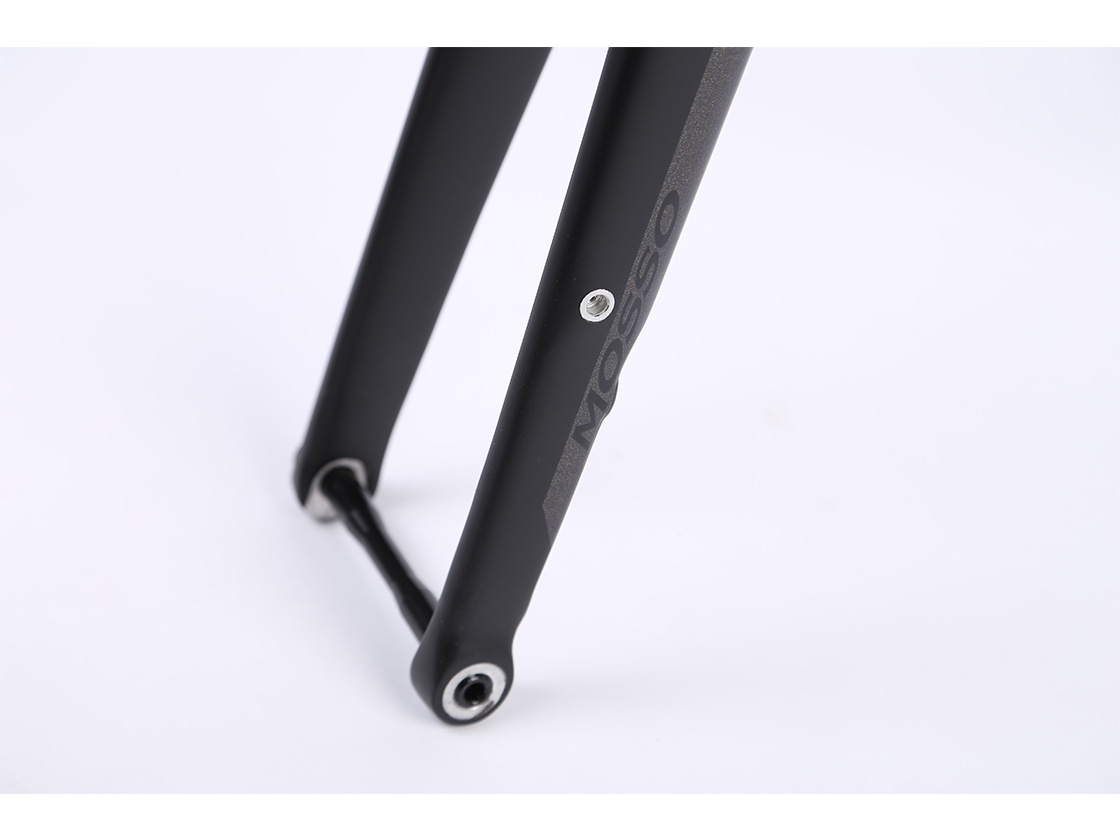

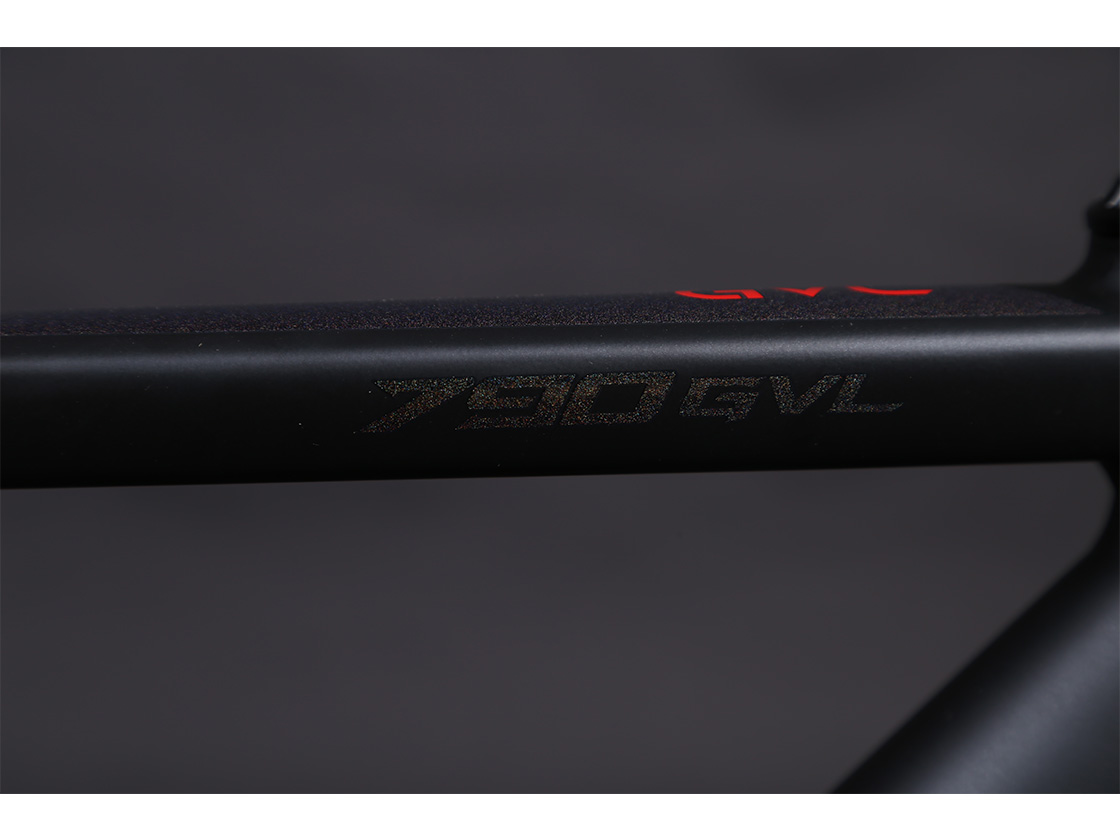

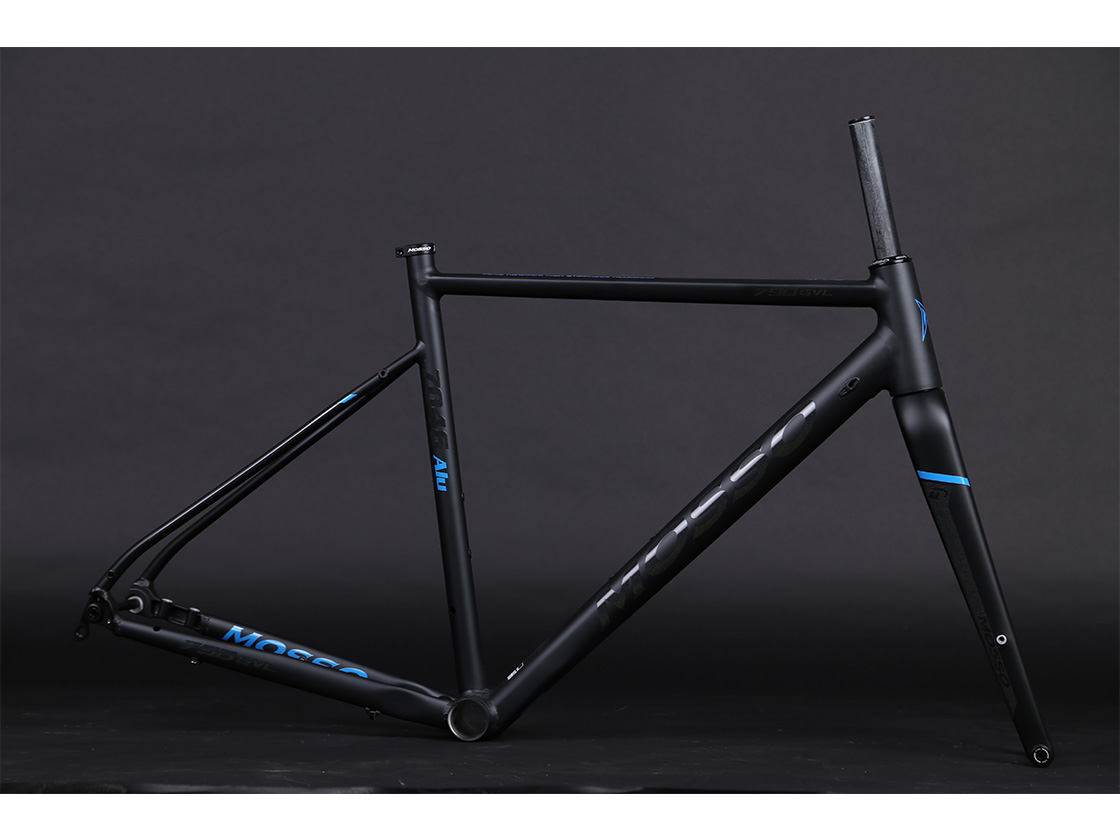

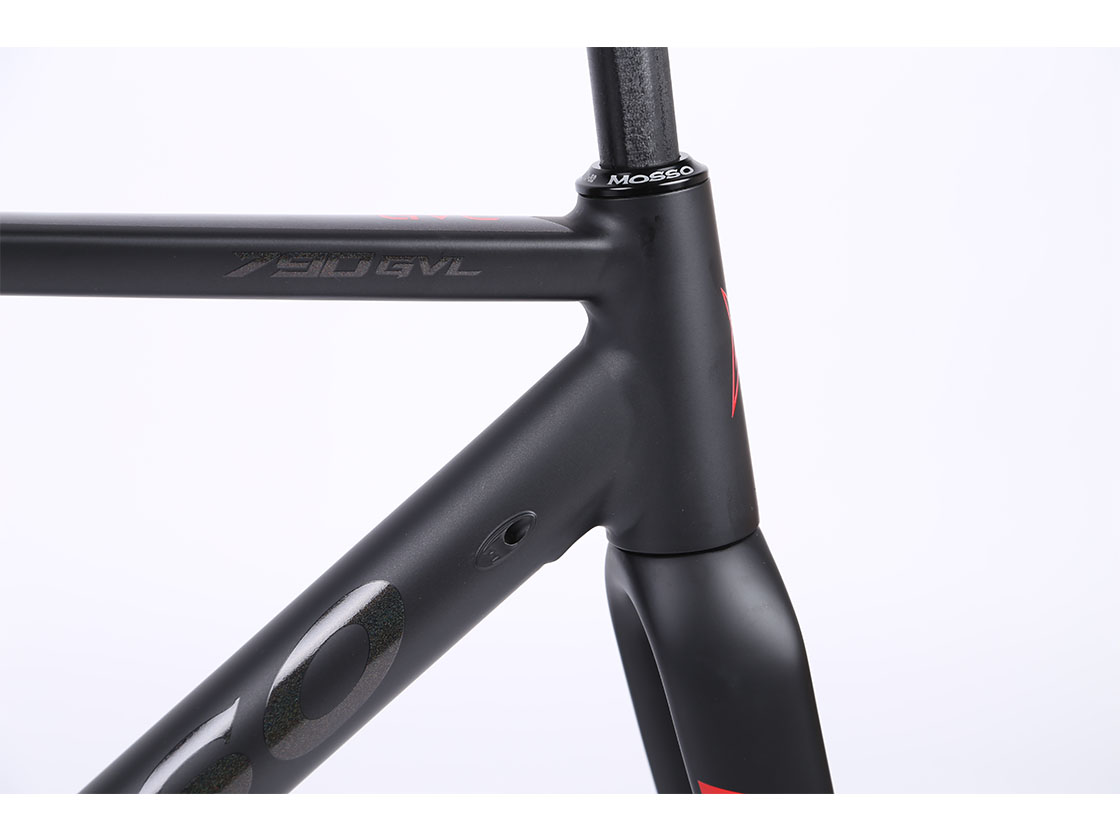

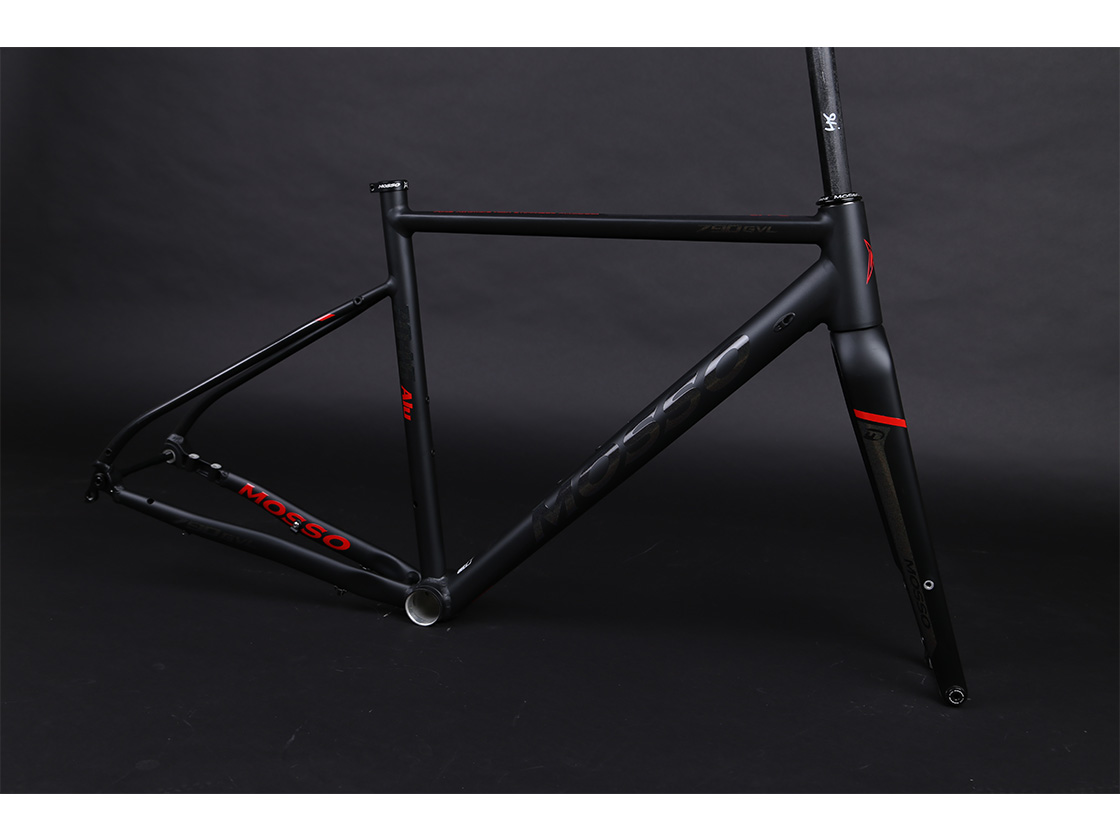

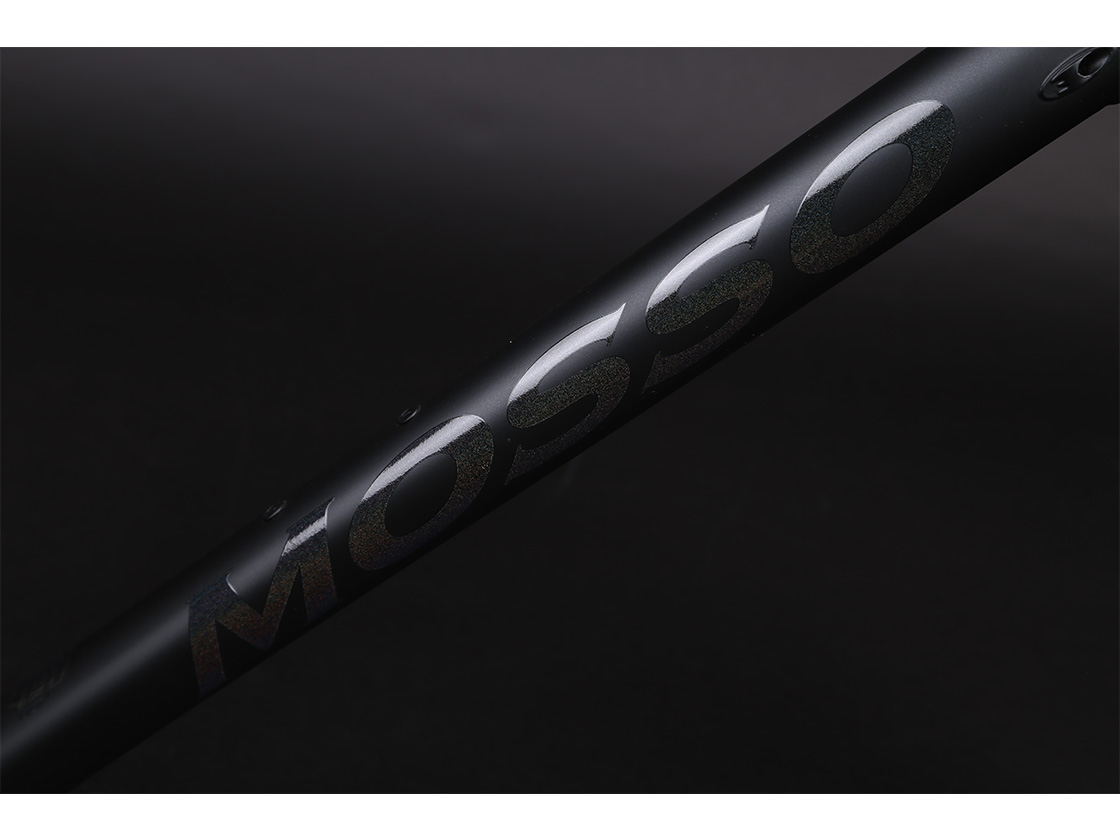

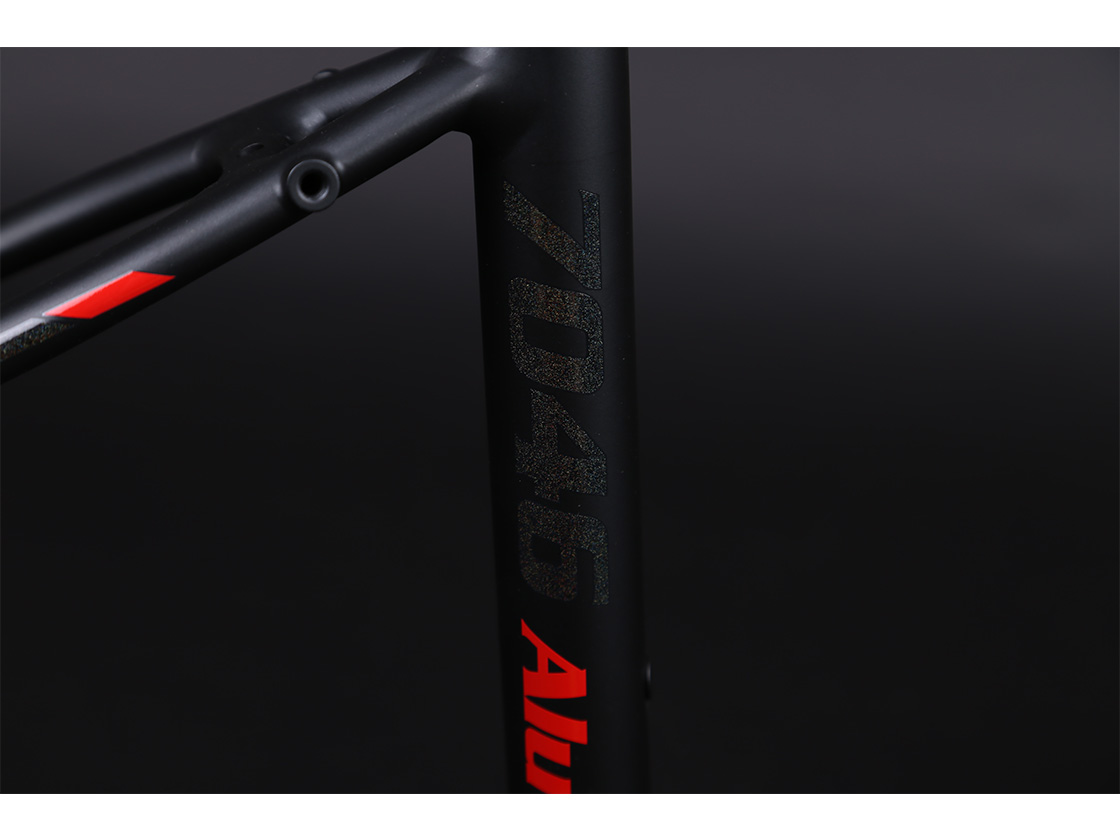

GAllery
