SMALL BIKES20-F5
Evolution of city 20-F5 travel

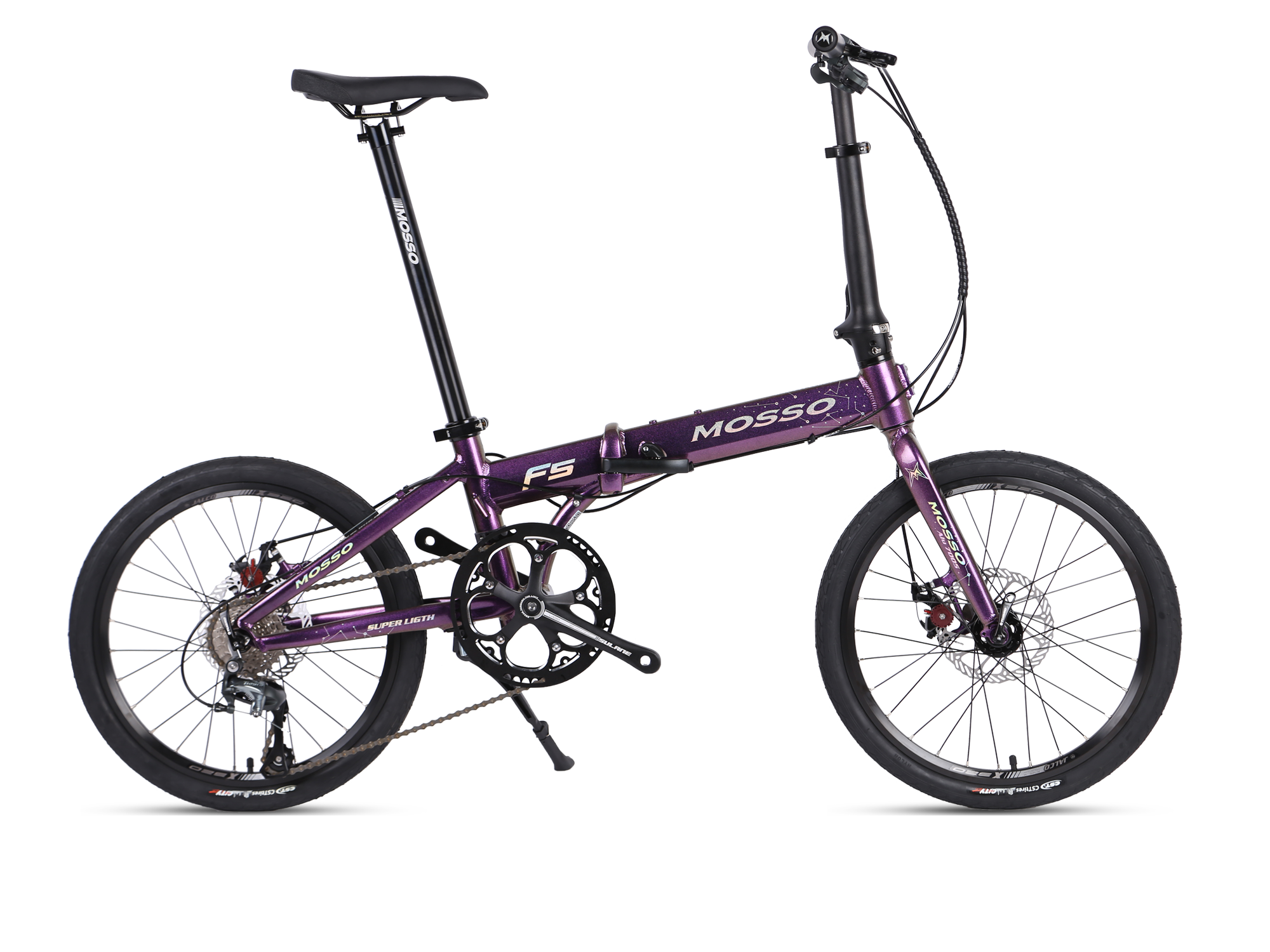

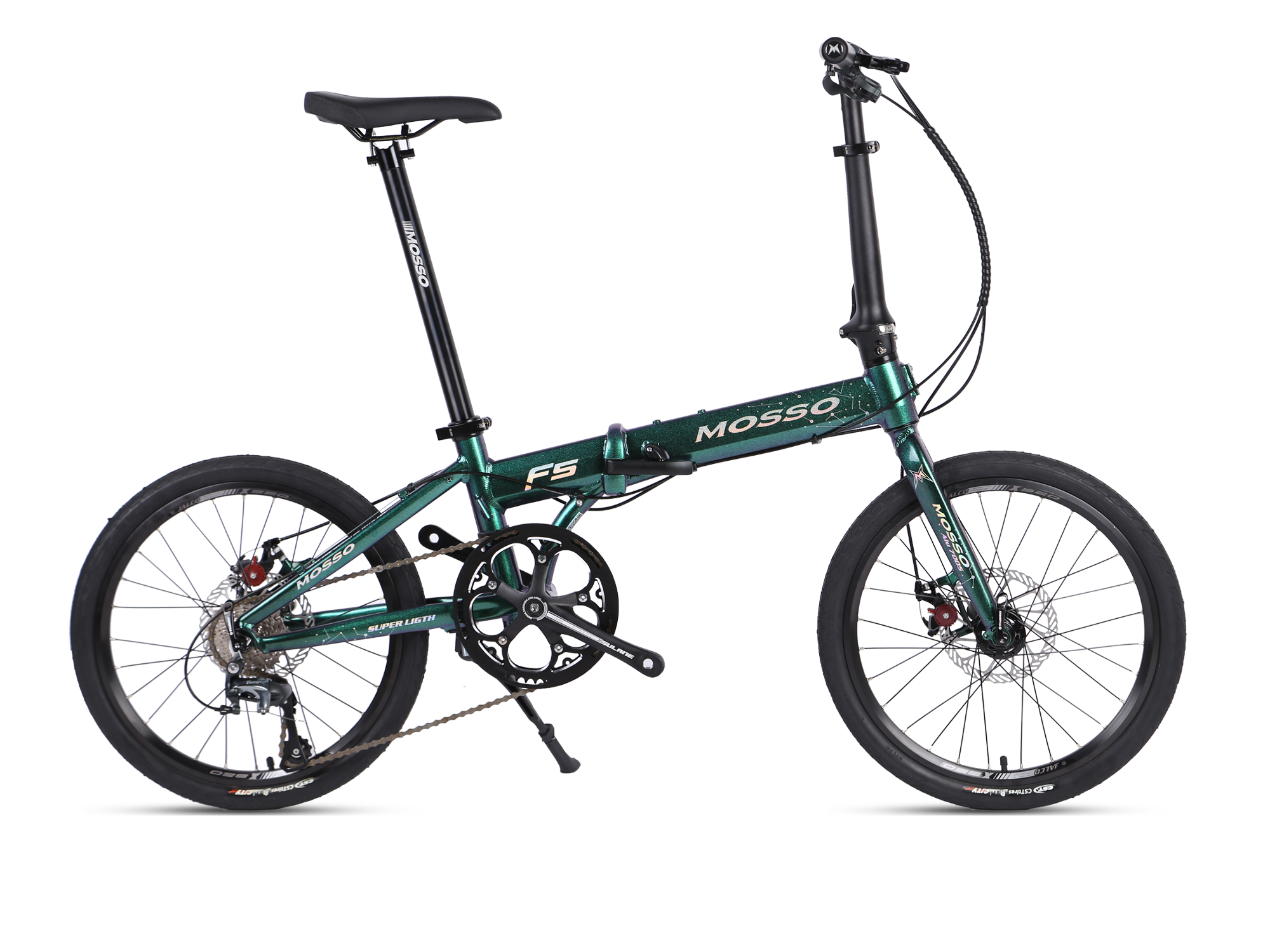

Color :

MOSSO 20-F5

Folding bikes are developed for years, a enjoyment of relexed and free riding around the city. MOSSO 20-F5 has development direction for unique, supports in your target and gives you a amazing trip.

Specifications

SizeWeightBB lengthSeat postSeat clampHead set
20" 11kg 68mm 33.9mm 40.8mm 44mm

Characteristic

SizeMATERIALTYPETYPE FOR USEPRICE
20" ALU 6061


STANDARD COMPONENTS
Speed Change: 11 Speeds, max 40T

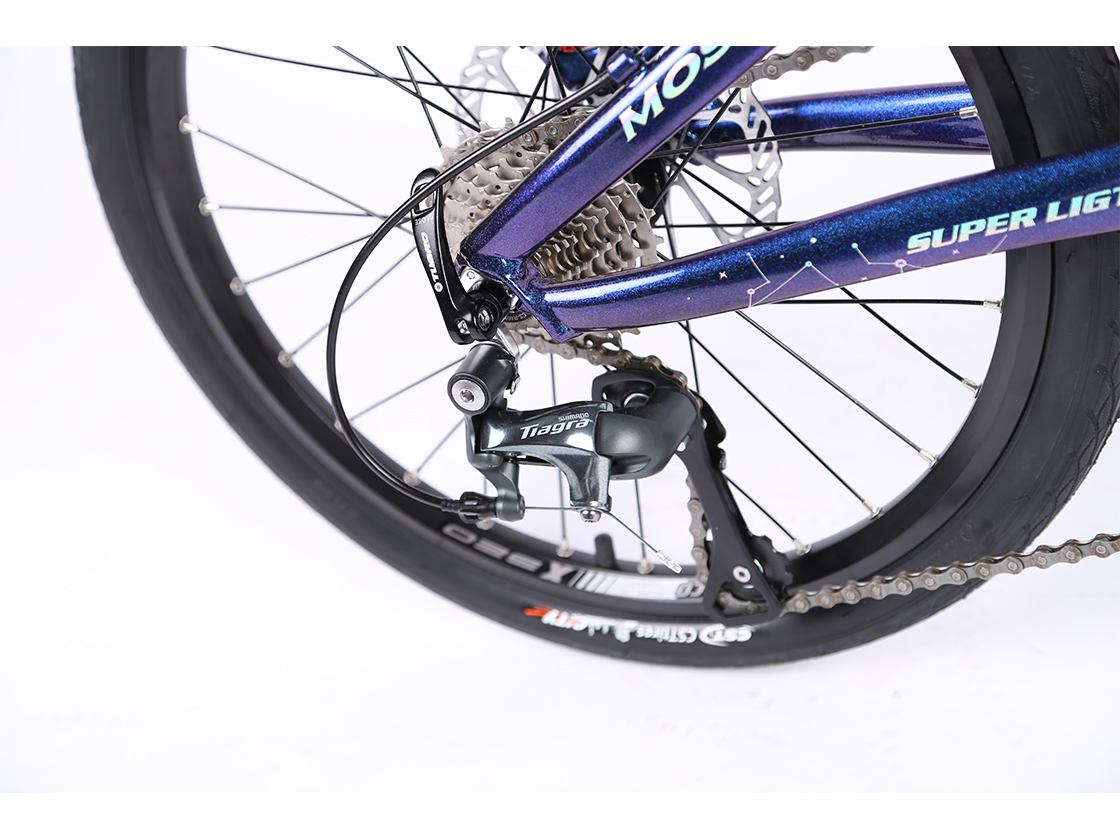

Rear Derailleur: L-TWOO RD-A11-M

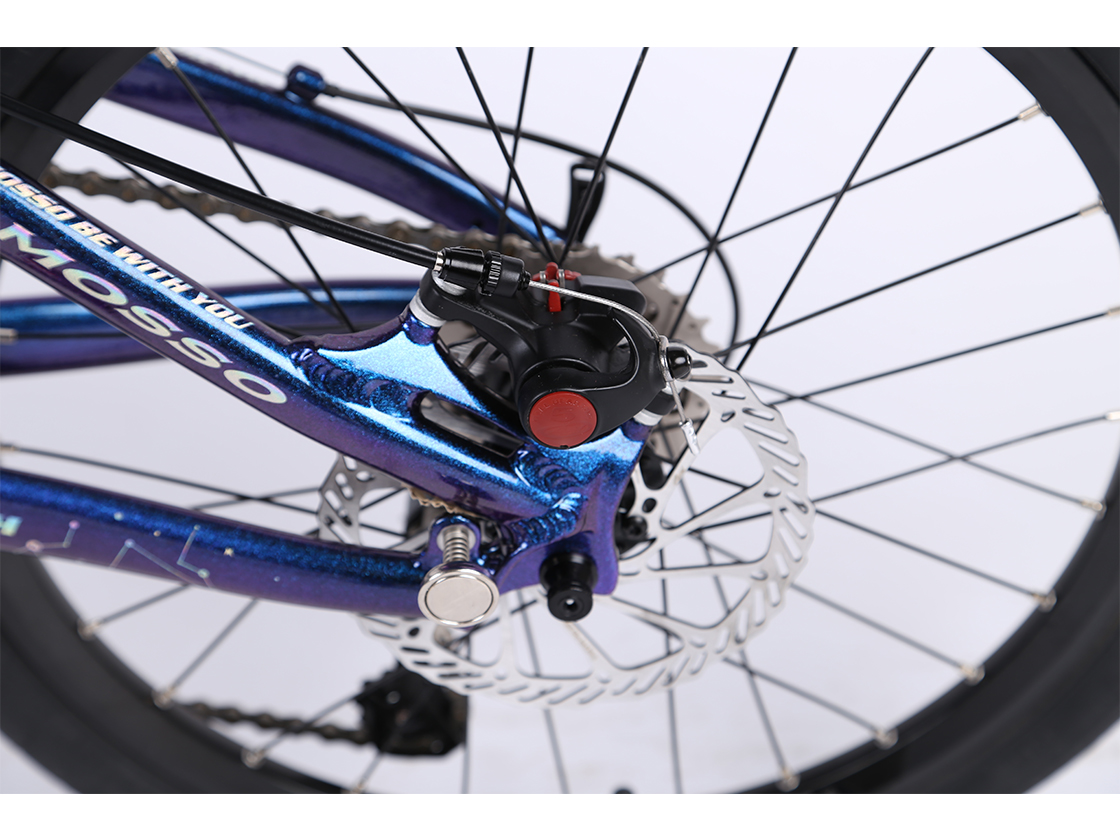

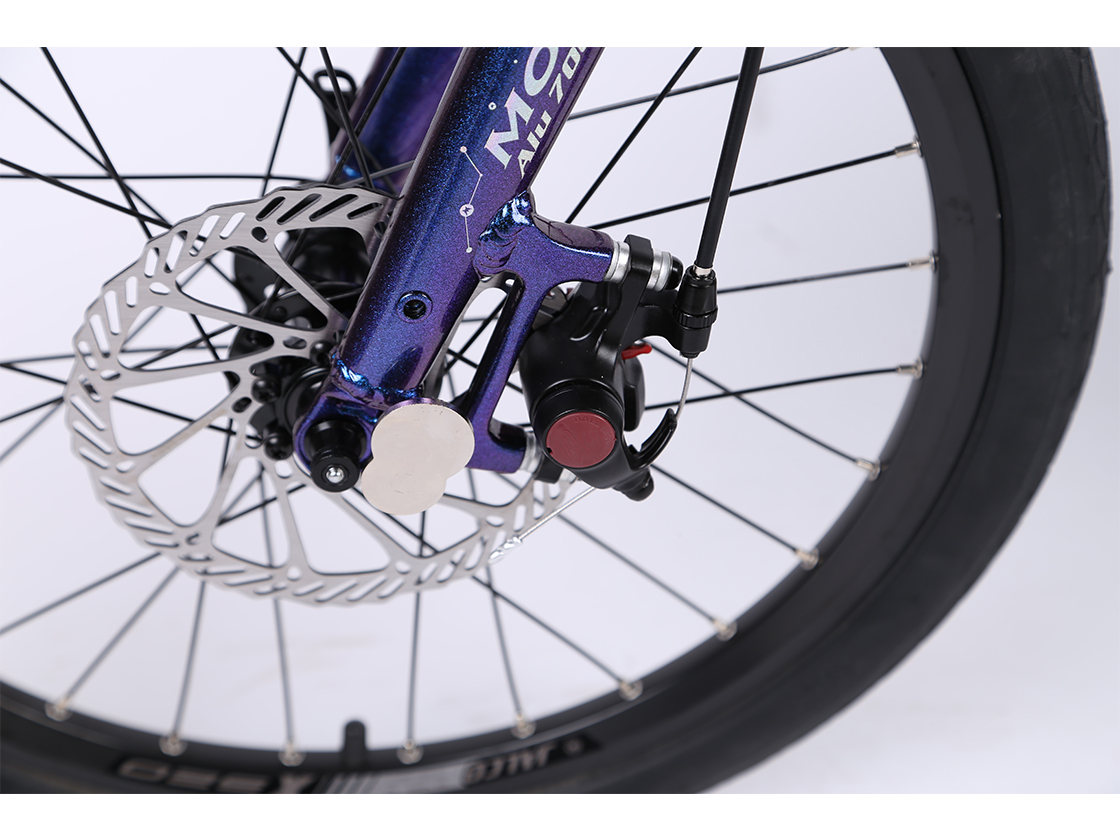

Front & Rear Brake: EO AR18
Crankset: CXVD-713C-4A

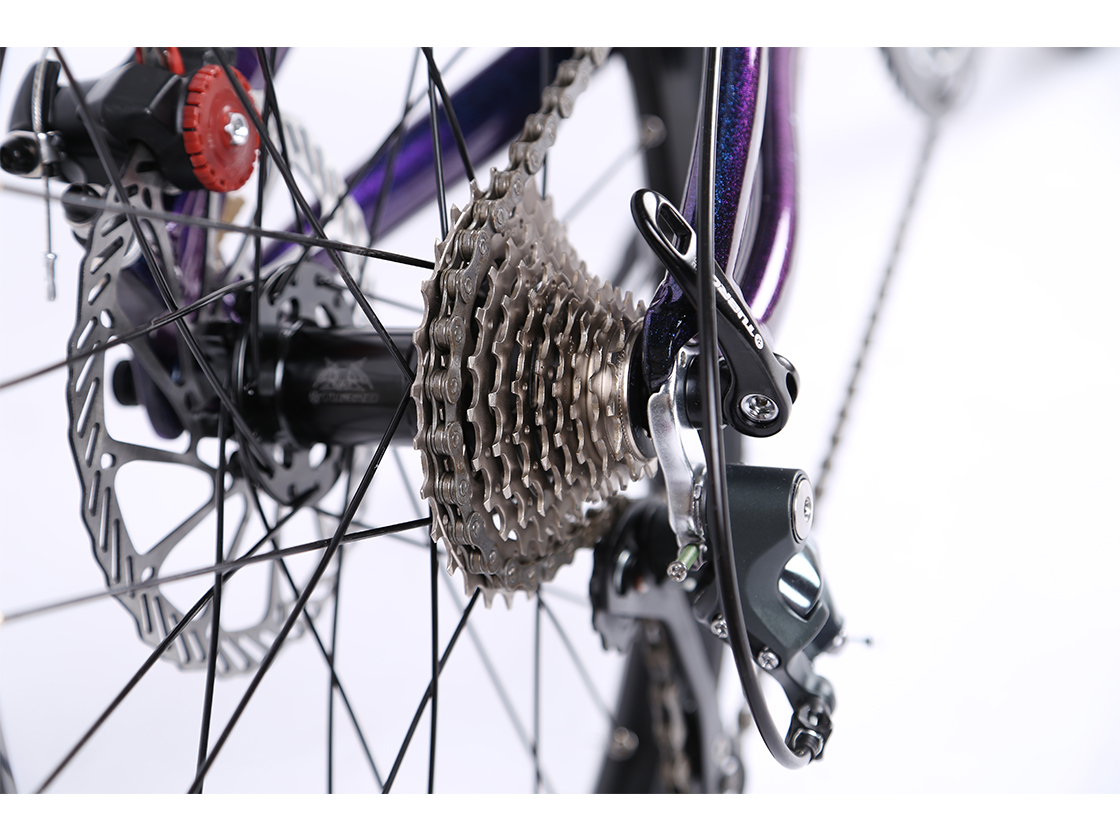

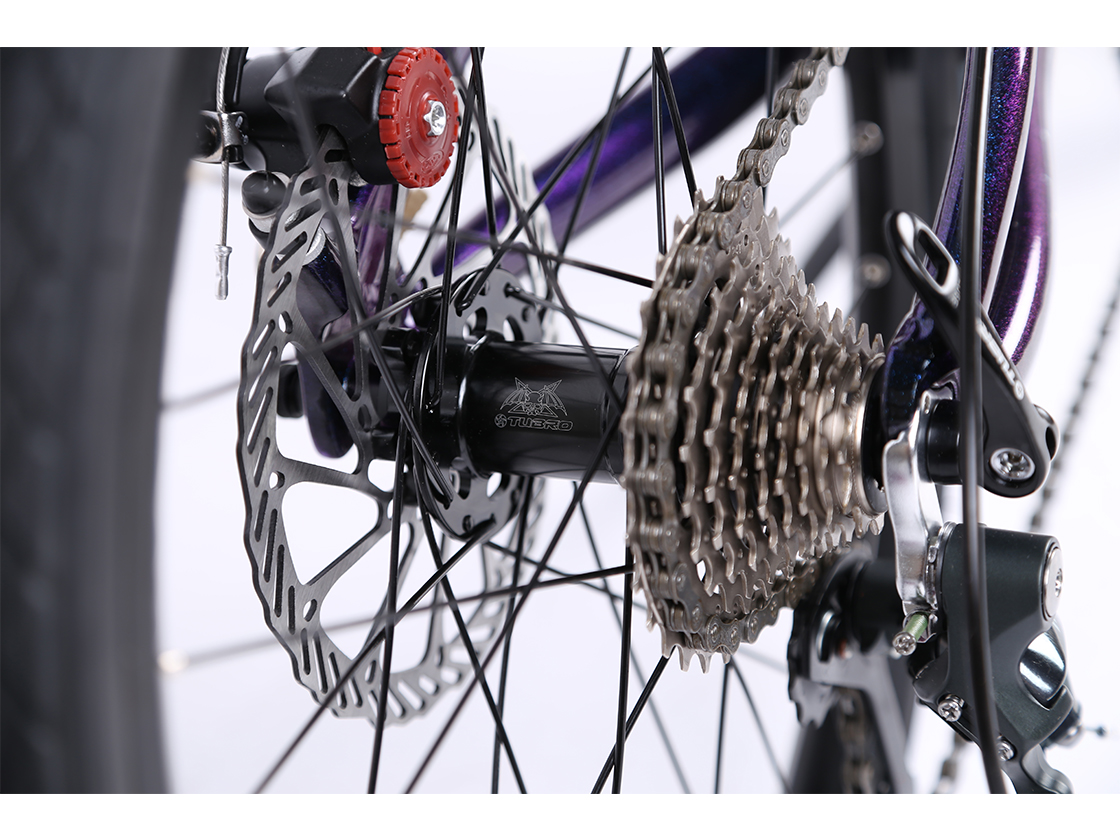

Cassettes: MTB-CS-HR11-40,11SPEED,11-40T

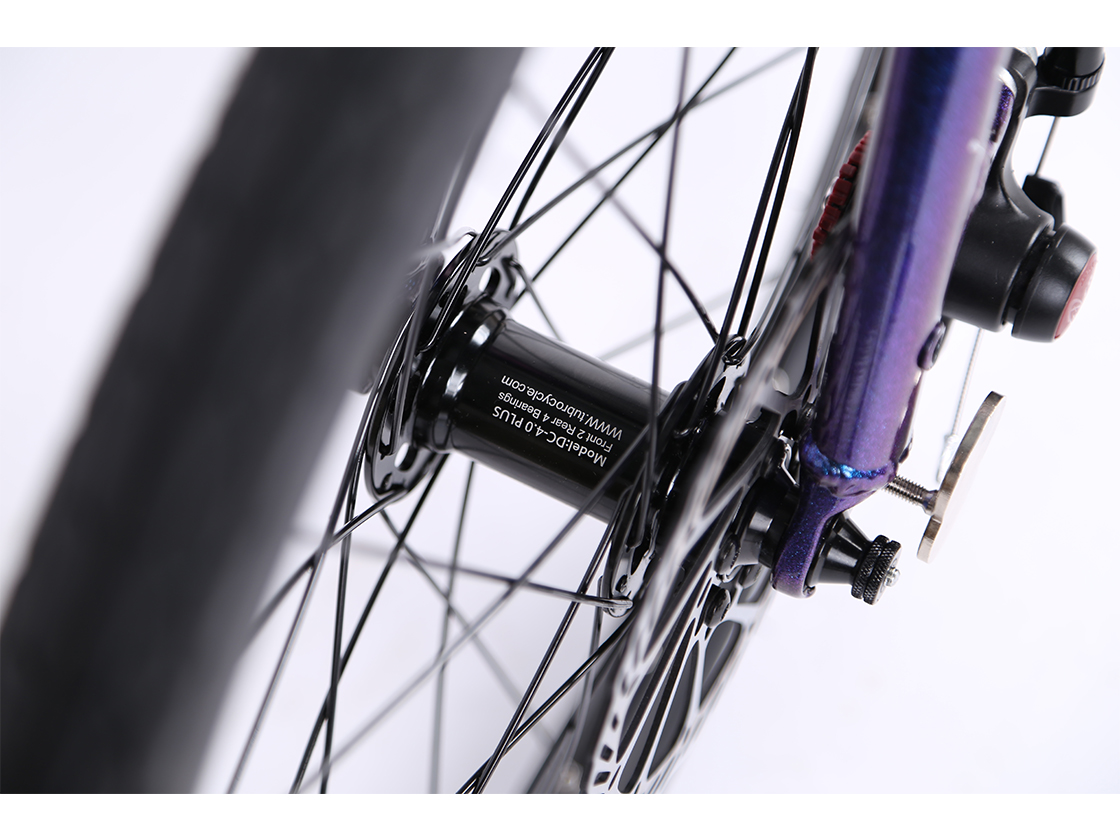

Wheelset: J14KA，20*1-3/8（451）40mmH, 14G*1.5*24H F/V
Tires: CST C1959 20*2.0 w/o
Pedal: Gineyea M-506 9/16
Max Load: 120KG
Frame: Mosso 20-F3 alloy
Fork: Mosso 20-F5 alloy 7005
.

GAllery

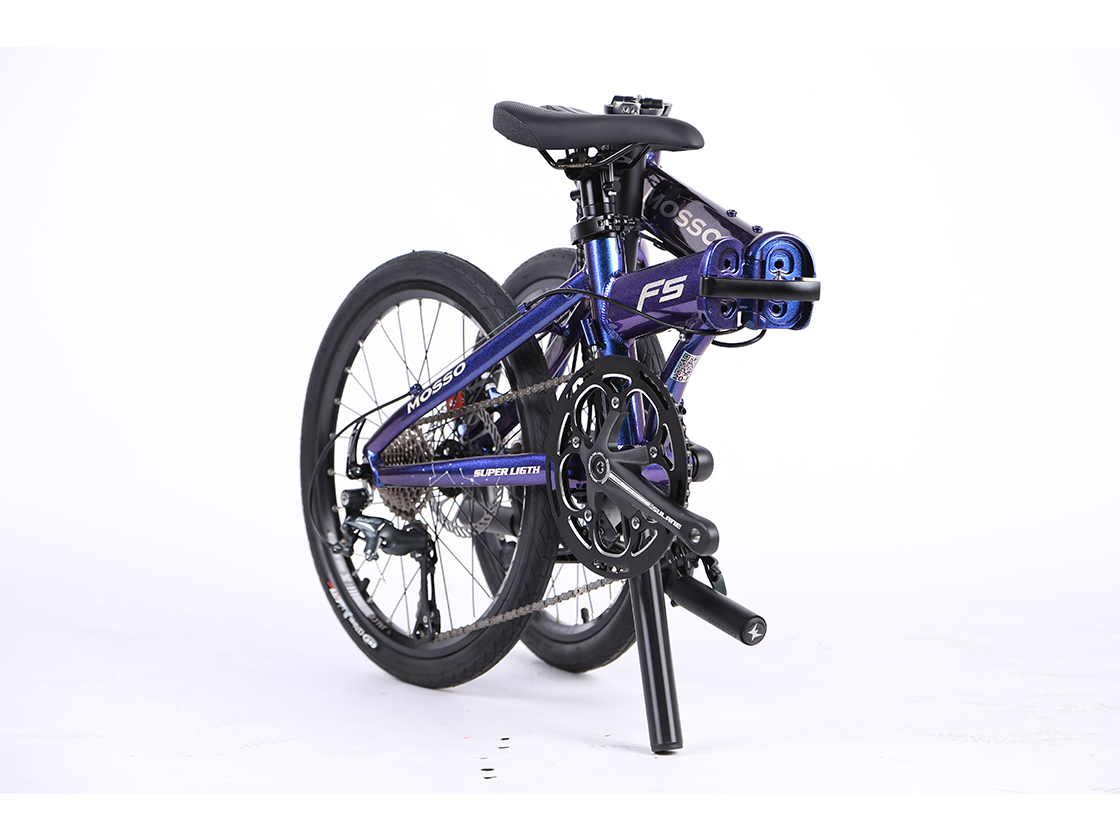

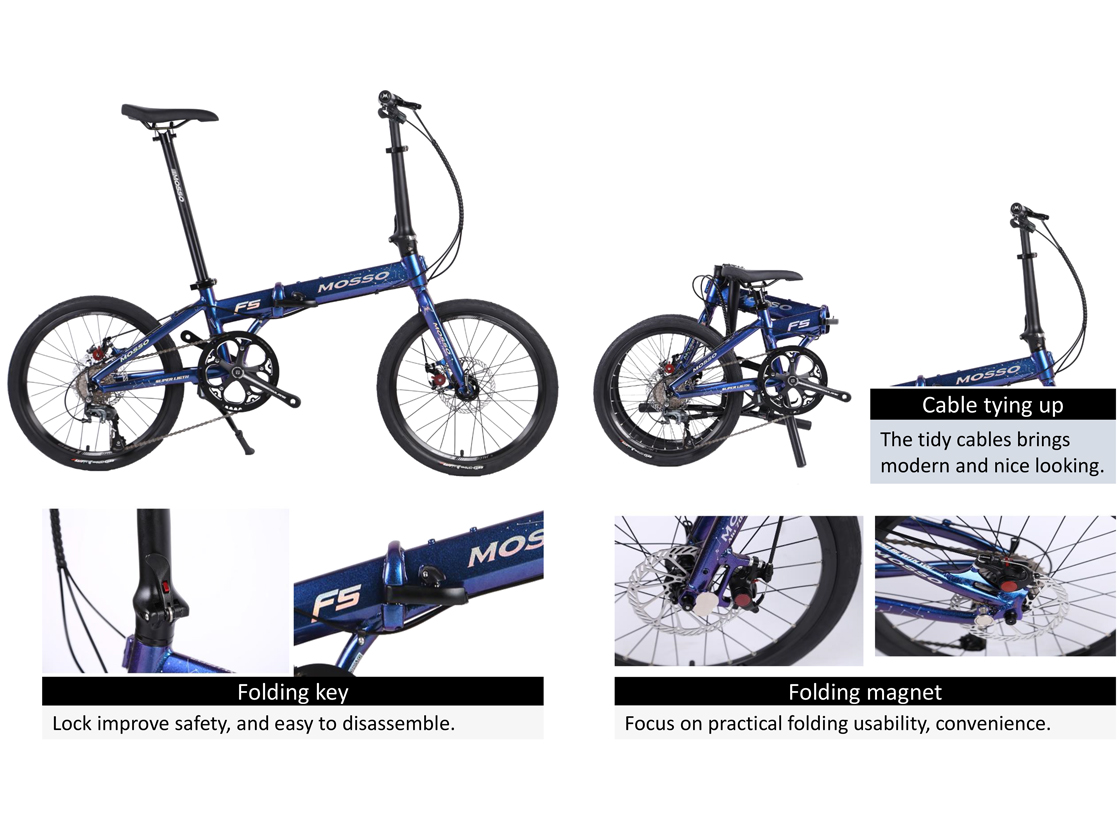

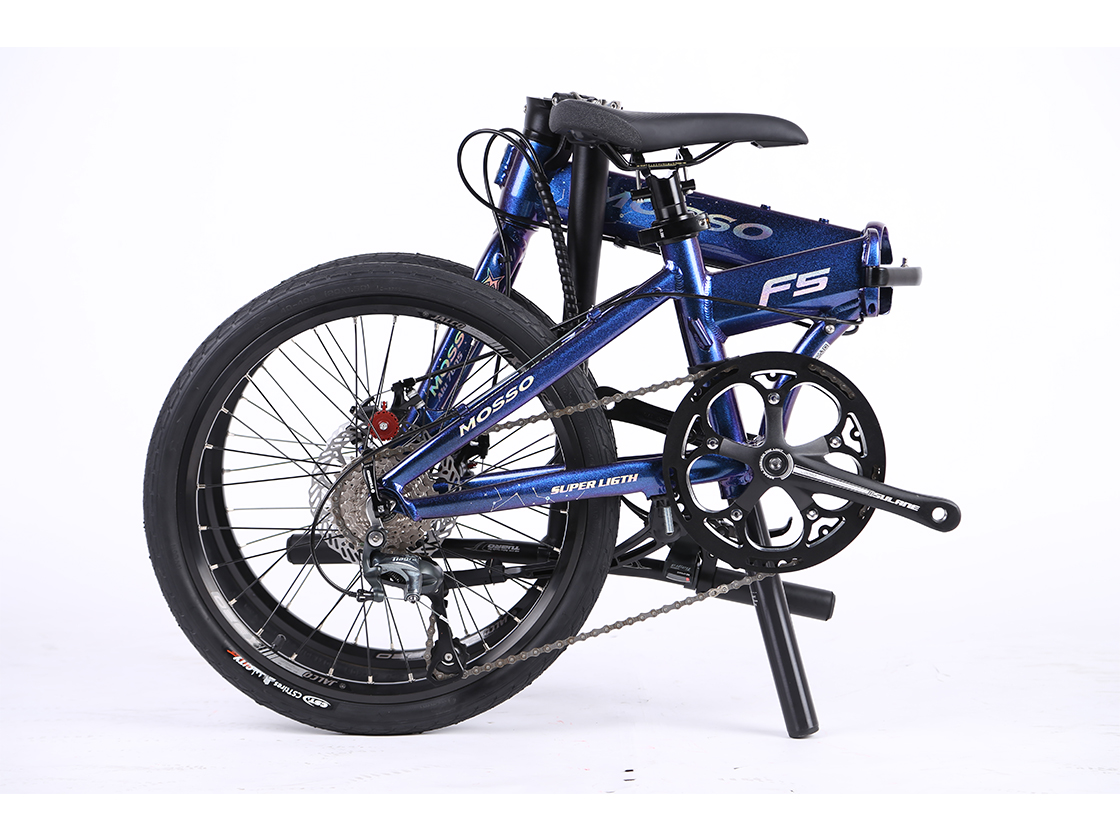

How to fold

A convenient folding mechanism to easily fold and unfold in 30 seconds movement

① Place crank and pedal in correct position

② Flip the seat post release lever and push saddle dowrword to the end

③ Flip the handle bar release lever and make sure the break lever face toward the ground

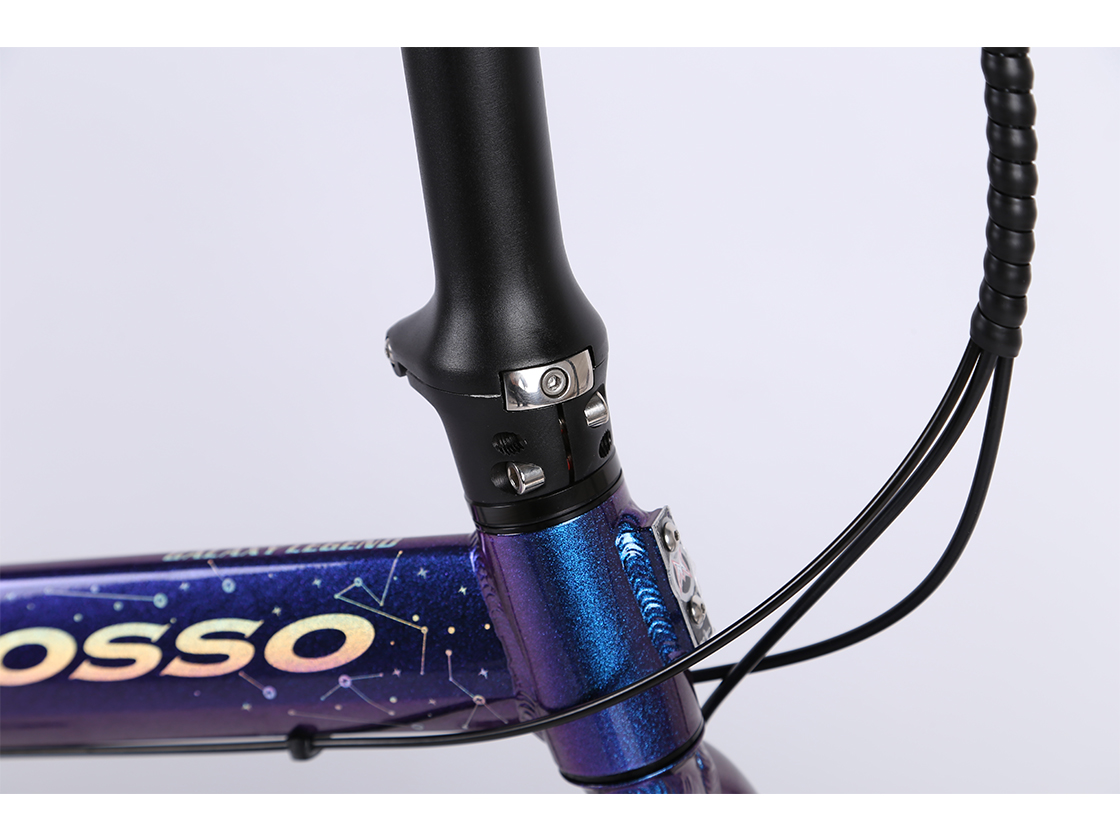

④ Flip the stem release lever and swing down

⑤ Flip the main release lever and swing backward
