ELECTRICE-706
Color :

technology

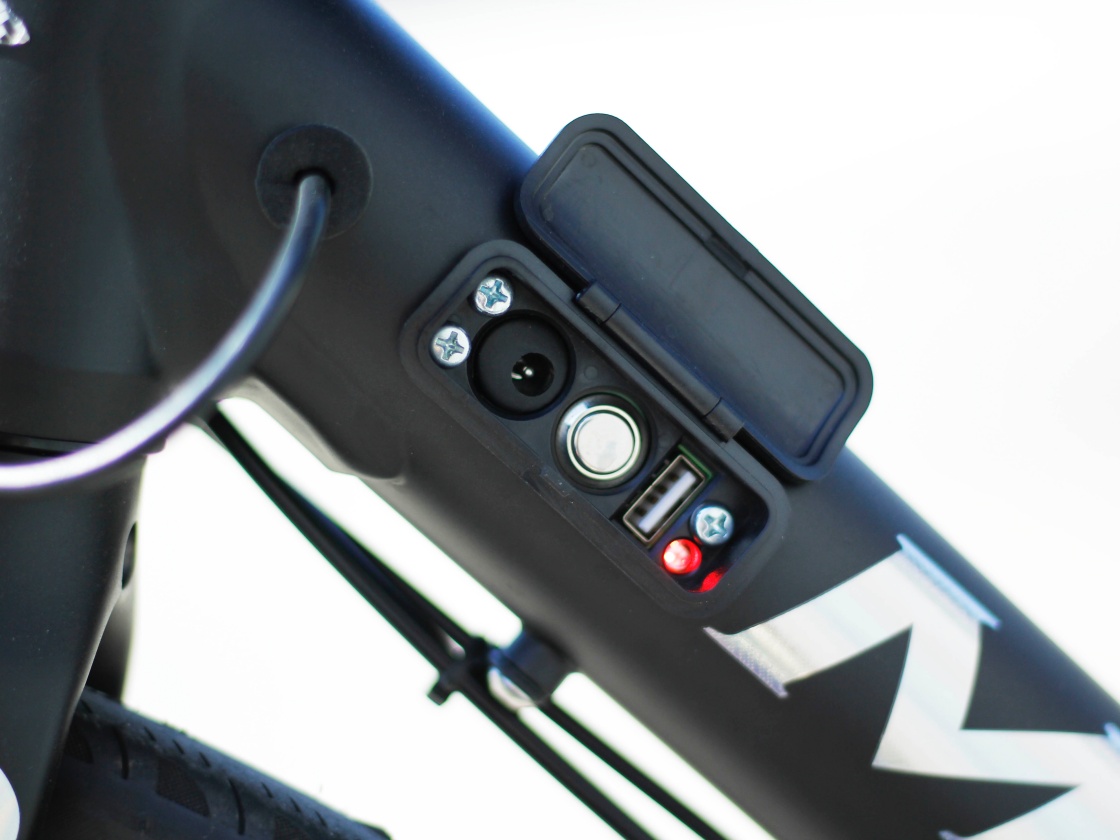

MOSSO The lightest Alloy E-Road bike design Small and effective battery which hide inside Down tube. Up to 10 speed, Charging hole and power design both by left side which is easy to use, cleaner routing giving more safety for battery. Designing USB Charging port 1A for charging your phone. Make you traveling more easy. E-706 light weight only 14KG and looking just like a normal bike. We just want bike as easy as we ride.
Using 7000mAh , make yo ride the distance farer up to 100KM-120KM.

Specifications

Frame Mosso E-706 Superlgiht ALU 7005
Fork Mosso E-706 Alloy/Carbon leg fork
Headset Mosso Super light MH4403

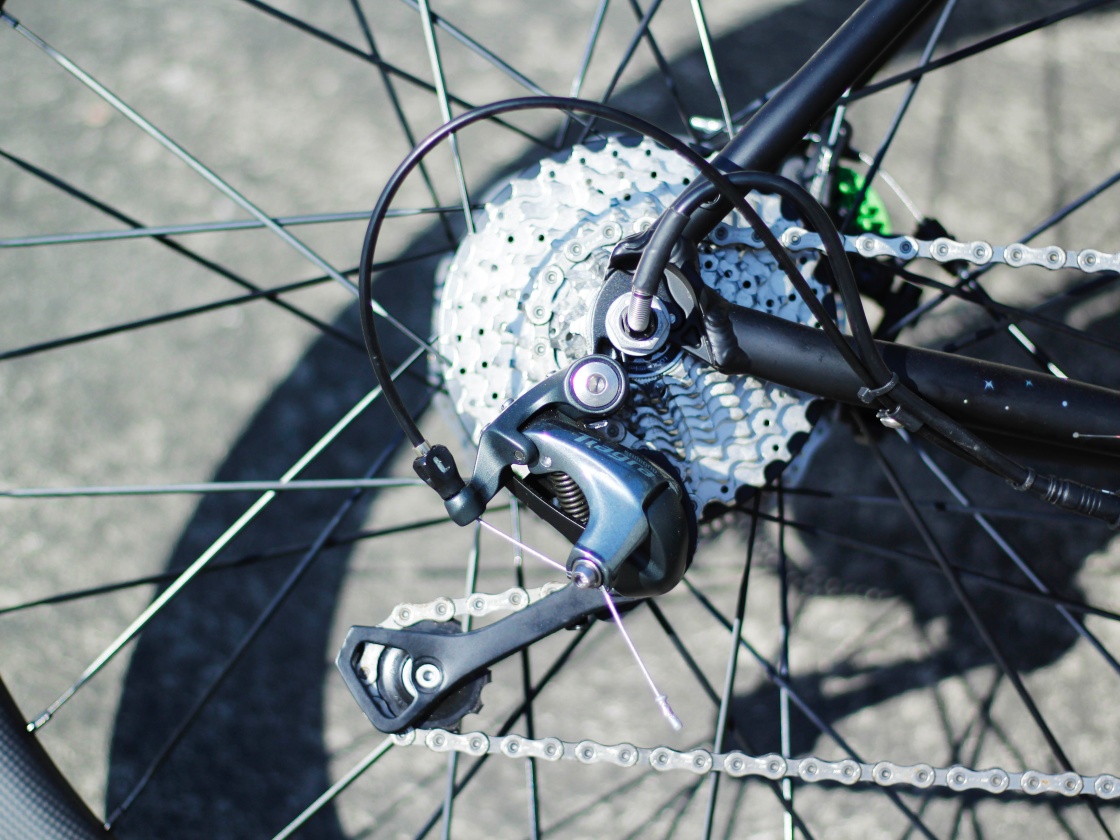

Rear Derailleur Shimano Tigra
Shifter Shimano Tigra
Brake Levers Shimano Tigra
Brake MOSSO
Crankset MOSSO 170mm, 44T
Cassette Shimano Tigra, 10S ,11-34T

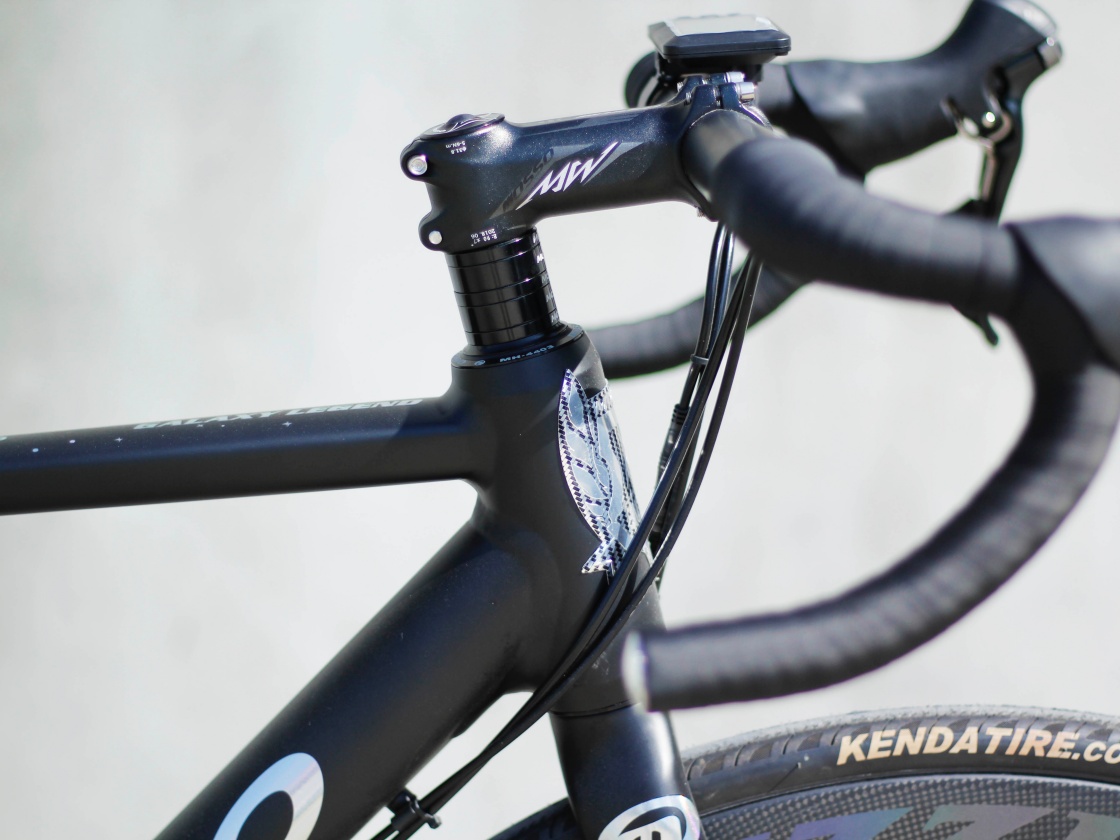

Handlebar MOSSO CB-H/BAR-R6 Dropbar, Full Carbon
Seat post MOSSO SP-06CB, Alu/Carbon , 380mm*31.6mm
Stem MOSSO AL-ST-06CB , Alu/Carbon , 31.8mm 90mm
Saddle MOSSO SD-50
Front Wheels MIZZI RC55 , Disc brake Height 55mm Carbon , 28H , 2 bearing

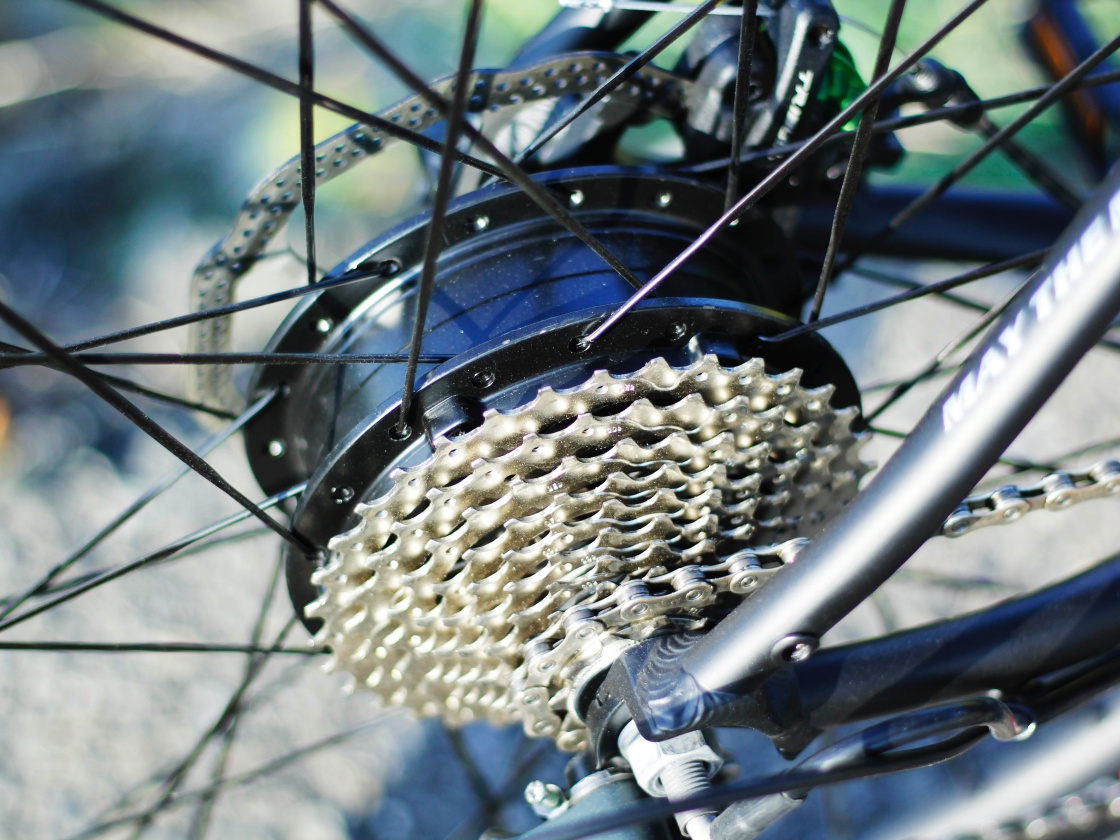

Rear Wheels MIZZI RC55 , Disc brake , 36H , Rear Motor 250W

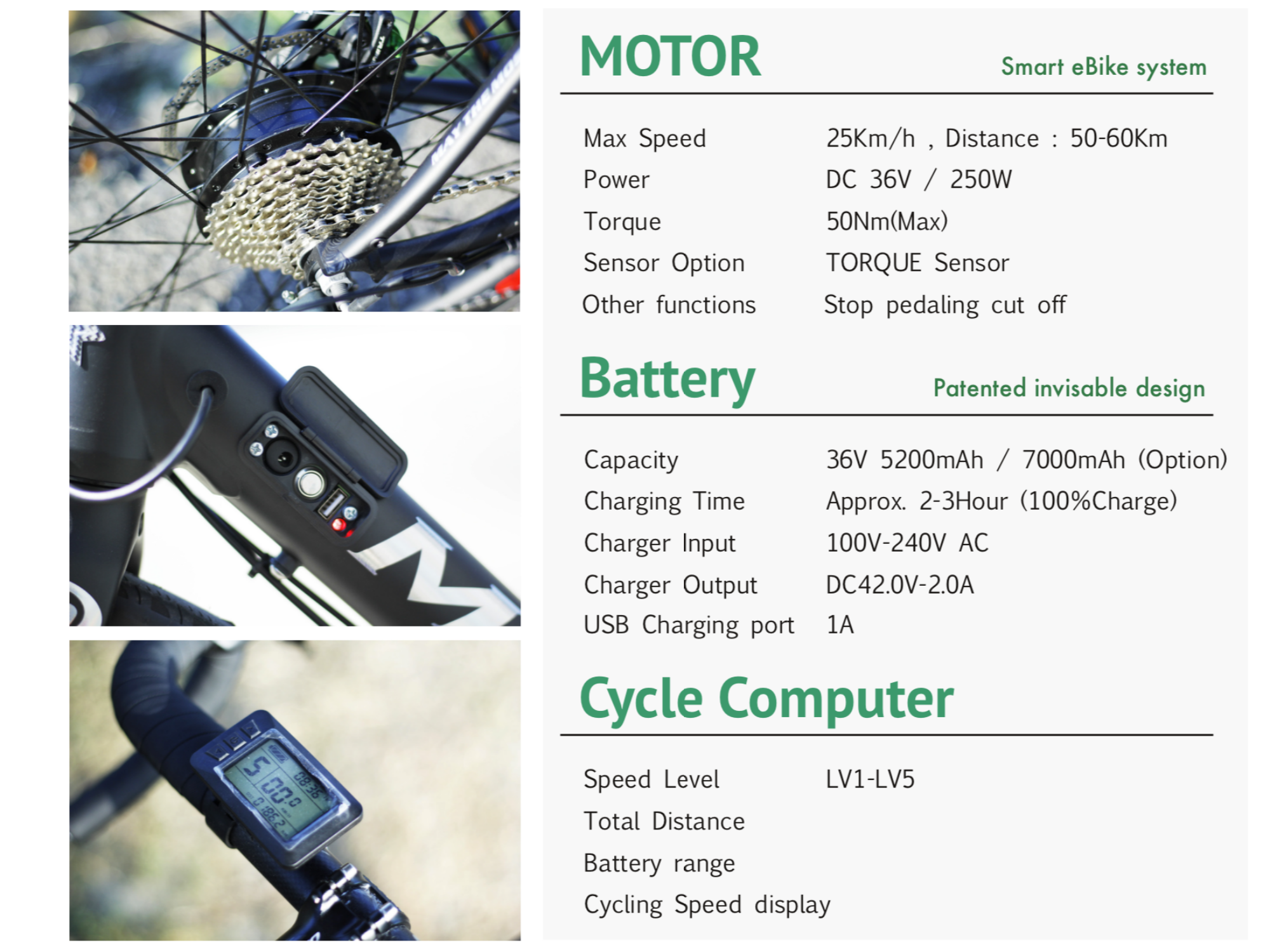

Rear Motor Max speed : 25Km/hr , Power : DC 36V / 250W
Battery 36V 5200mAh / 7000mAh ( Option ) , Charging time : Approx. 2-3Hours

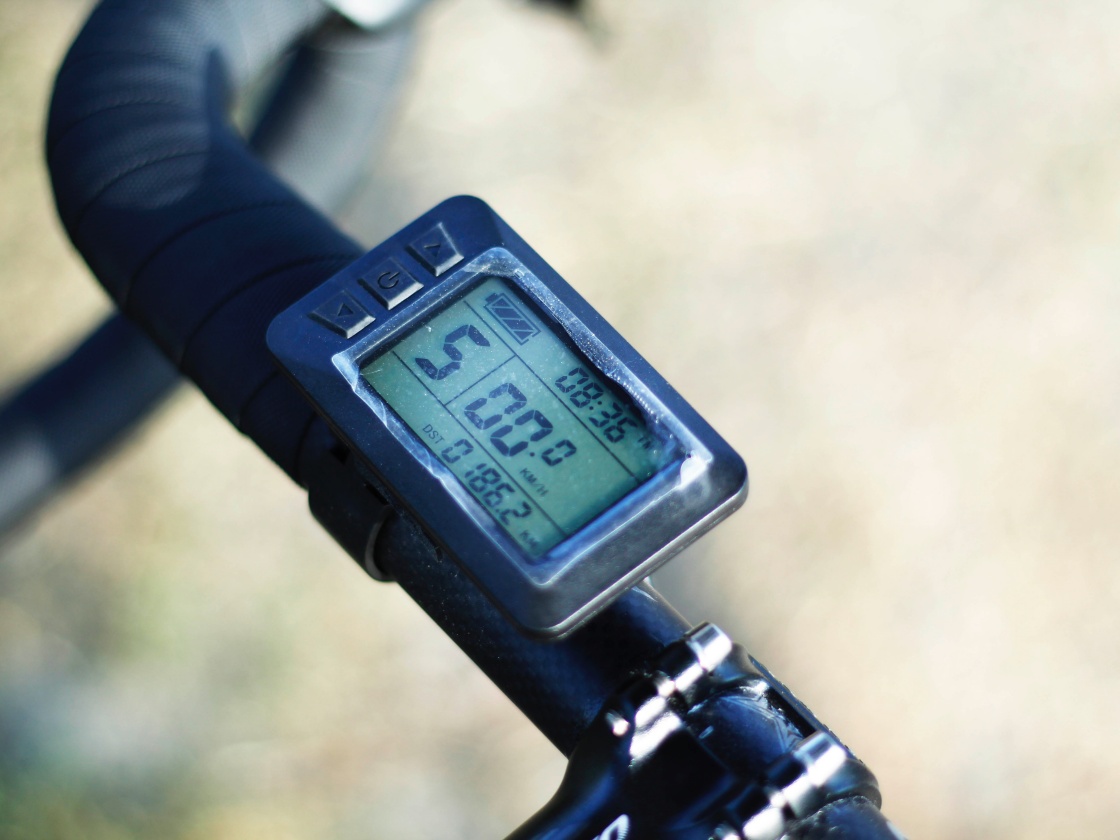

Computer Speed level Lv1-Lv5 , Distance , Battery range , Speed
Sensor Toque sensor
Tires KENDA 700*25C, F/V

Geometry

SIZE TT HT ST SA RC BB HA FL
460mm 513.6mm 135mm 460mm 74.5° 425mm 70mm 71.5° 367mm
490mm 524.6mm 135mm 490mm 74° 425mm 70mm 72.5° 367mm

GAllery
